GebraBit 2SMPP-02



  • Module type: MEMS Gauge pressure module
  • Module Supply Voltage: 5V
  • Output type:  Analog – Voltage
  • Pressure range: 0 kpa to 53 kpa
  • Pressure accuracy: ±0.8%
  • Package: GebraBit small (36.29mm x 32.72mm)



Add to wishlist
Compare
Add to wishlist
SKU: GB634EN Categories: Pressure, Products, Sensors
Share
  • Description
  • Specifications
  • Documents
Description

OVERVIEW

GebraBit 2SMPP-02 is a low temperature influence MEMS Gauge pressure Module.

GebraBit 2SMPP-02 module operate with “5V” supply Voltage.

2SMPP-02 utilizes a piezoresistive type sensing element which needs a constant current drive to convert pressure to voltage and because of that GebraBit 2SMPP-02 module is optimized to provide a constant current of 100uA to the Piezo resistor and  As a result, depending on the pressure change, the output of the module will be change.

2SMPP-02 is an analog low temperature influence MEMS Gauge pressure Sensor that utilizes a piezoresistive element that provides electrical characteristics superior to capacitive pressure sensors. Applications for these sensors include medical equipment, home appliances, air movement control, level indicators, leak detection, and pressure controllers.

WARNING: FOR ACCURATE INFORMATION ABOUT ICs ABSOLUTE MAXIMUM RATINGS AND ITS PRECIOUS CHARACTERISTICS RANGES, USERS MUST CERTAINLY REFER TO ICs MANUFACTURE DATASHEET.



Key Features

  • On Board, ON/OFF LED indicator
  • GebraBit Pin Compatible with GEBRABUS
  • GebraBit small package
  • It can be used as a daughter board of GebraBit MCU Modules
  • Featuring Castellated pad (Assembled as SMD Part)
  • Separatable screw parts to reduce the size of the board

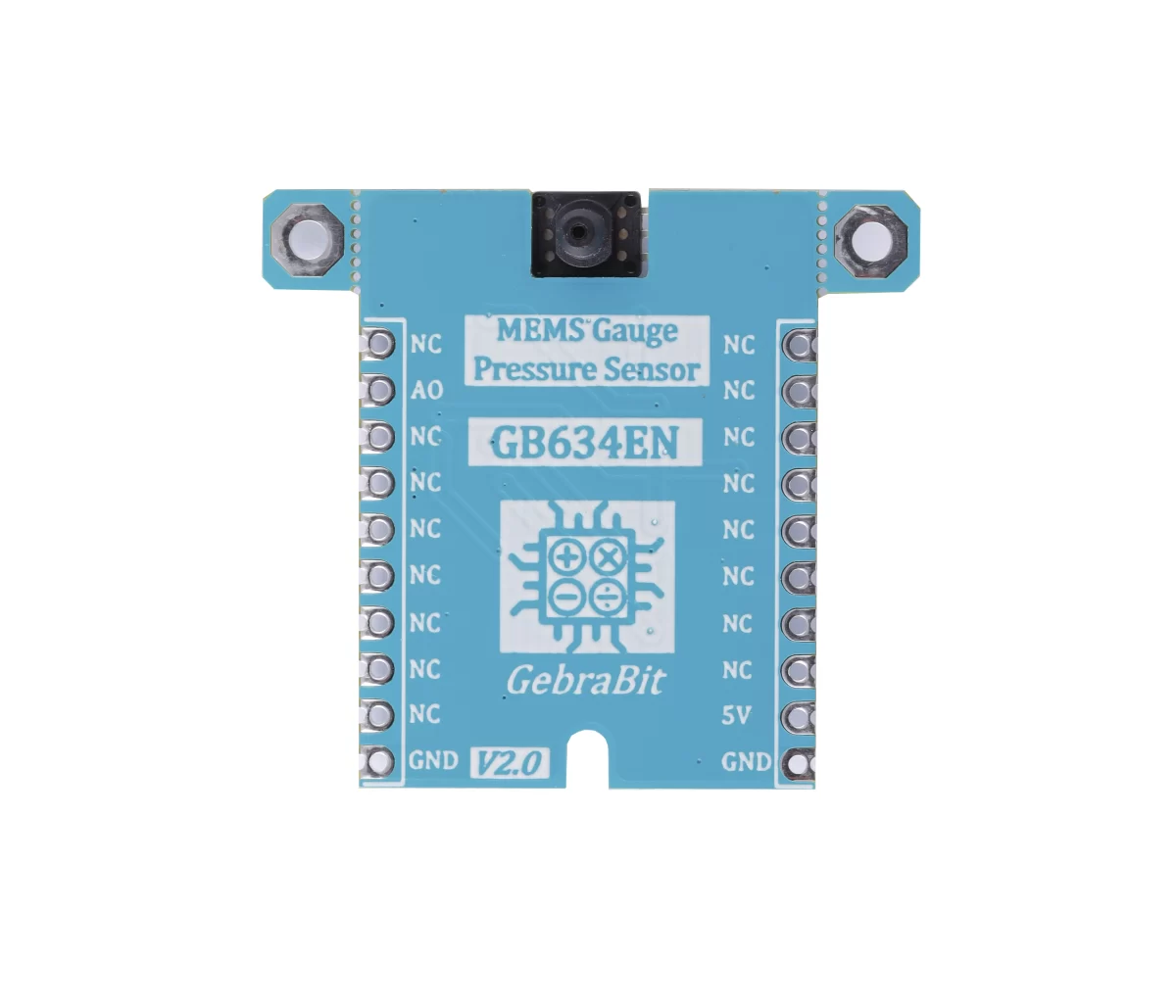

Pinout Diagram

GebraBit 2SMPP-02 pinout

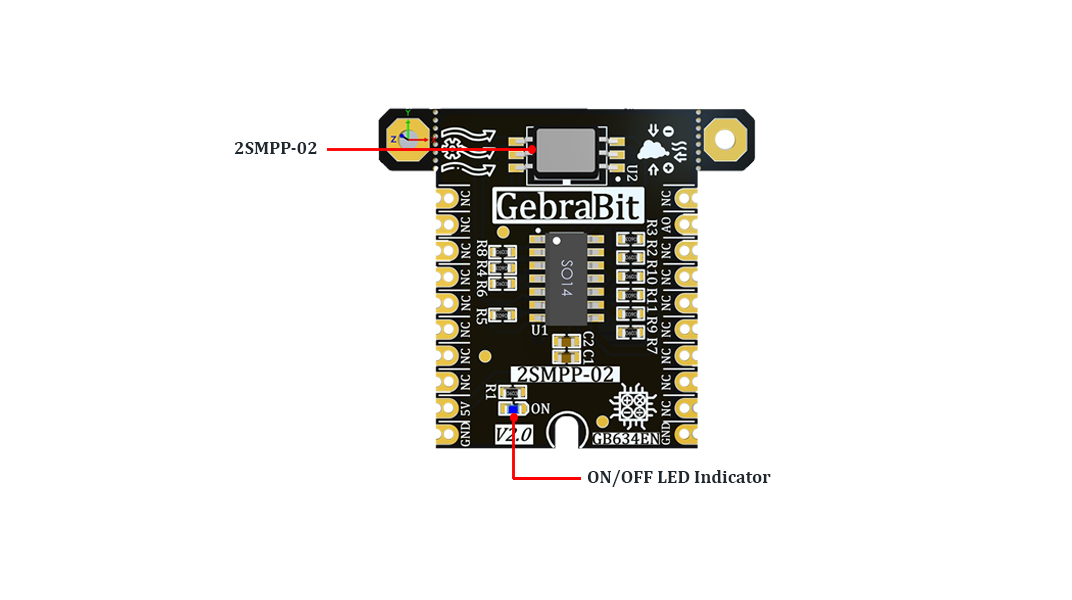

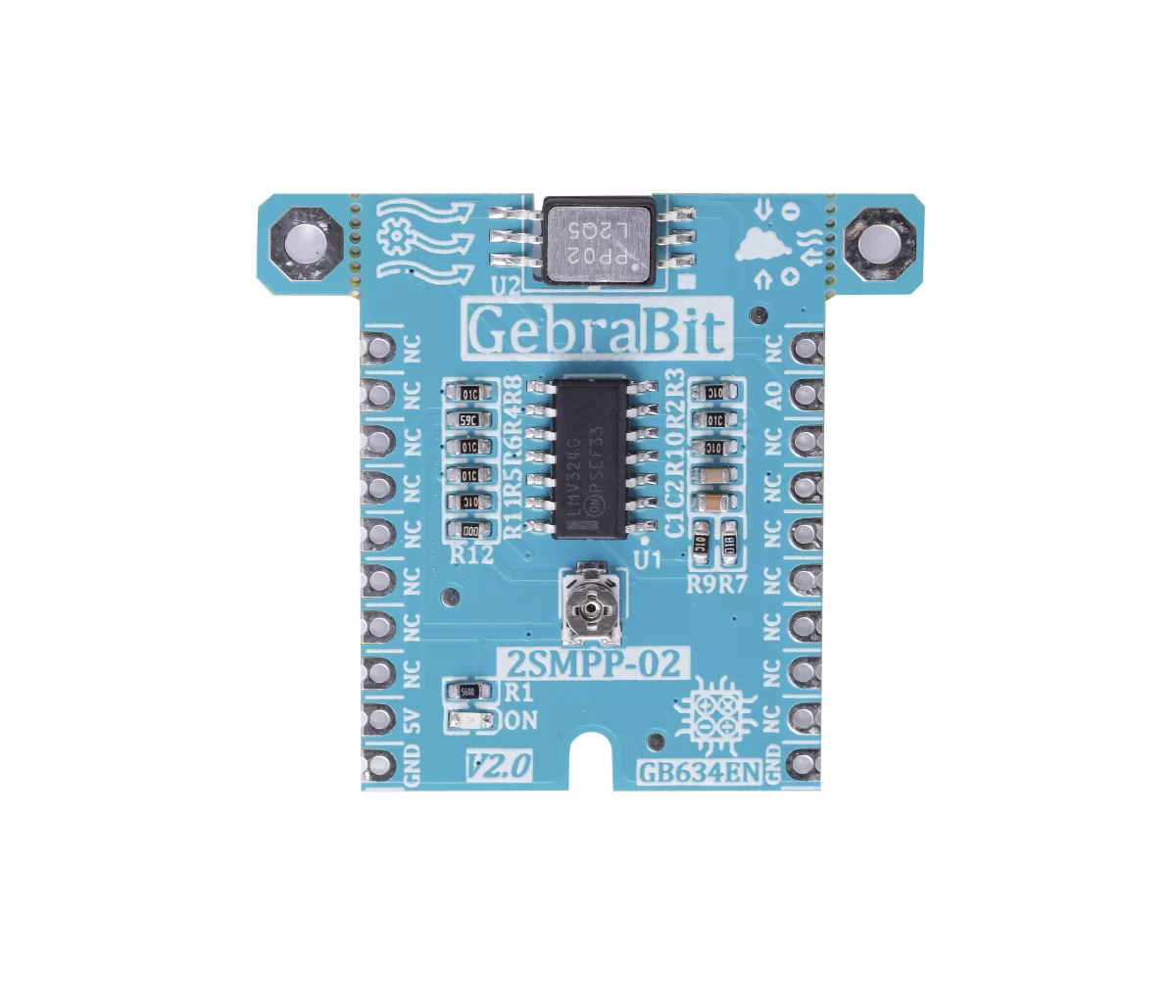

Module Overview



Specifications
Part Number

GebraBit 2SMPP-02

Short Description

GebraBit 2SMPP-02 is a MEMS Gauge pressure module, with Analog – Voltage output and 0 kpa to 53 kpa measurement range

Board Type

Module

Module Supply Voltage

5.0 V

Module Logic Voltage

5.0 V

Module Current Consumption

10 mA to 30 mA (Typ. 20 mA)

Output Type

Analog – Voltage

Pressure range

0 kpa to 53 kpa

Pressure Accuracy

±0.8%

Absolute Pressure Accuracy

–

Relative Pressure Accuracy

–

Pressure Resolution

–

Pressure Sensivity

8 mV/kpa to 10 mV/kpa

Temperature range

–

Temperature Accuracy

–

Temperature Resolution

–

Humidity range

–

Relative Humidity Accuracy

–

Humidity Resolution

–

Package

GebraBit small (36.29mm x 32.72mm)

Brand

GebraBit

Documents

  • Schematic (.pdf)
  • Module Layout (.pdf)
  • 2SMPP-02 Datasheet
  • Wiki Link (Source Code and Tutorial)
DISCLAIMER: GEBRABIT PRODUCTS ARE INTENDED SOLELY FOR RESEARCH & DEVELOPMENT PURPOSES. GEBRABIT EXPLICITLY DECLARES IT HAS NO RESPONSIBILITY IF USERS UTILIZE THEM IN ALL OTHER SENSITIVE AND PRECISE APPLICATIONS THAT CAUSE FINANCIAL AND HUMAN LIFE DAMAGE.
