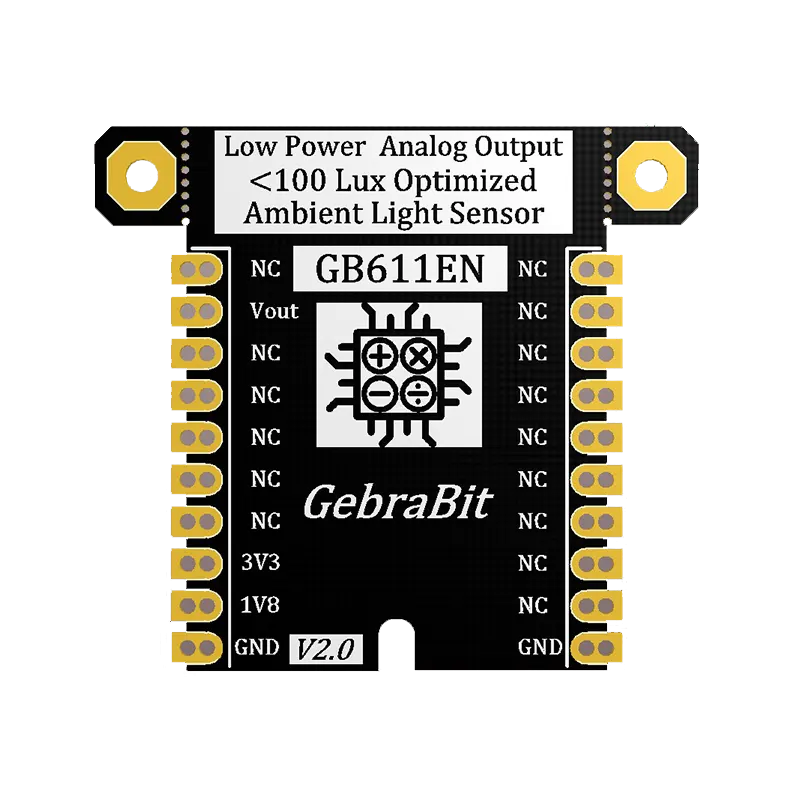

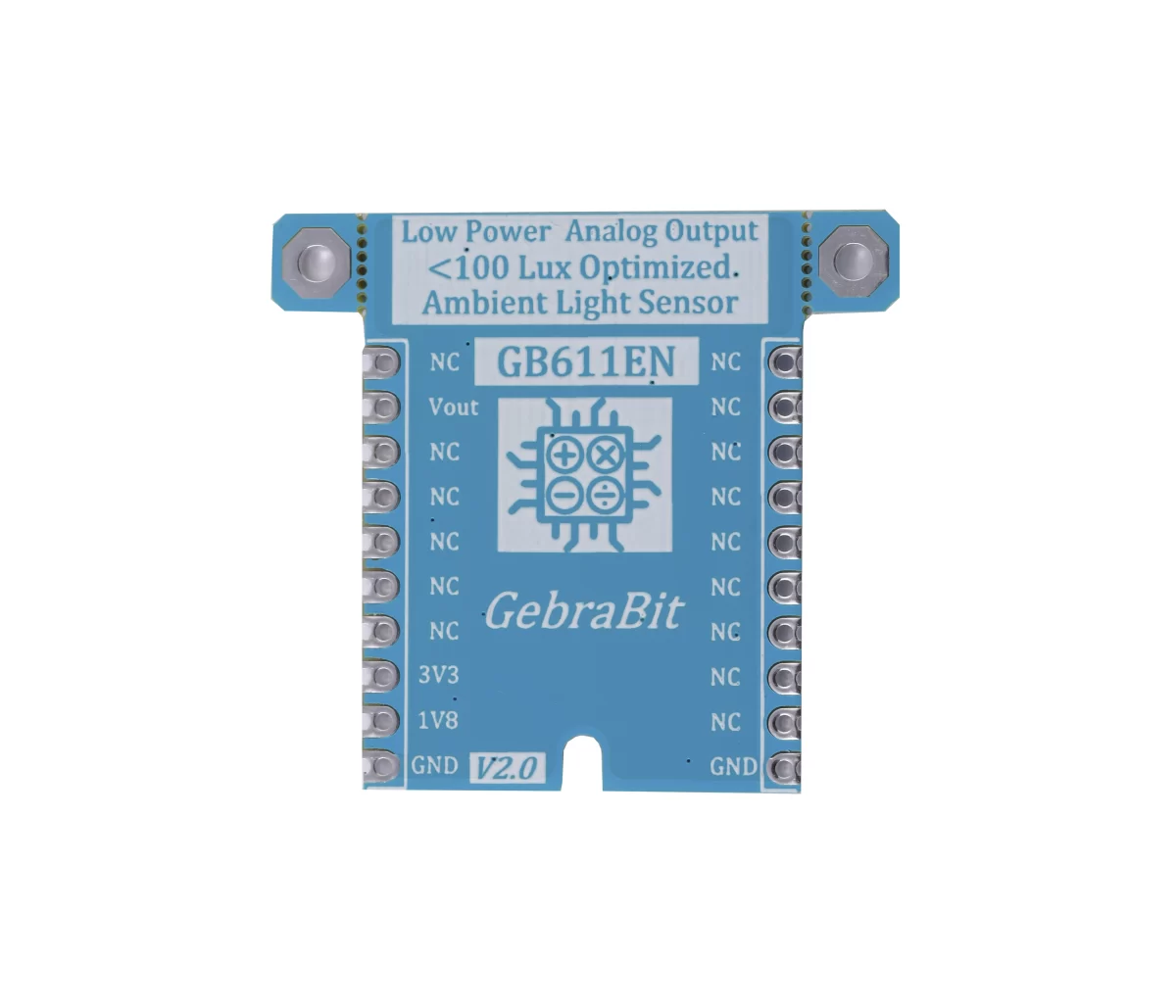

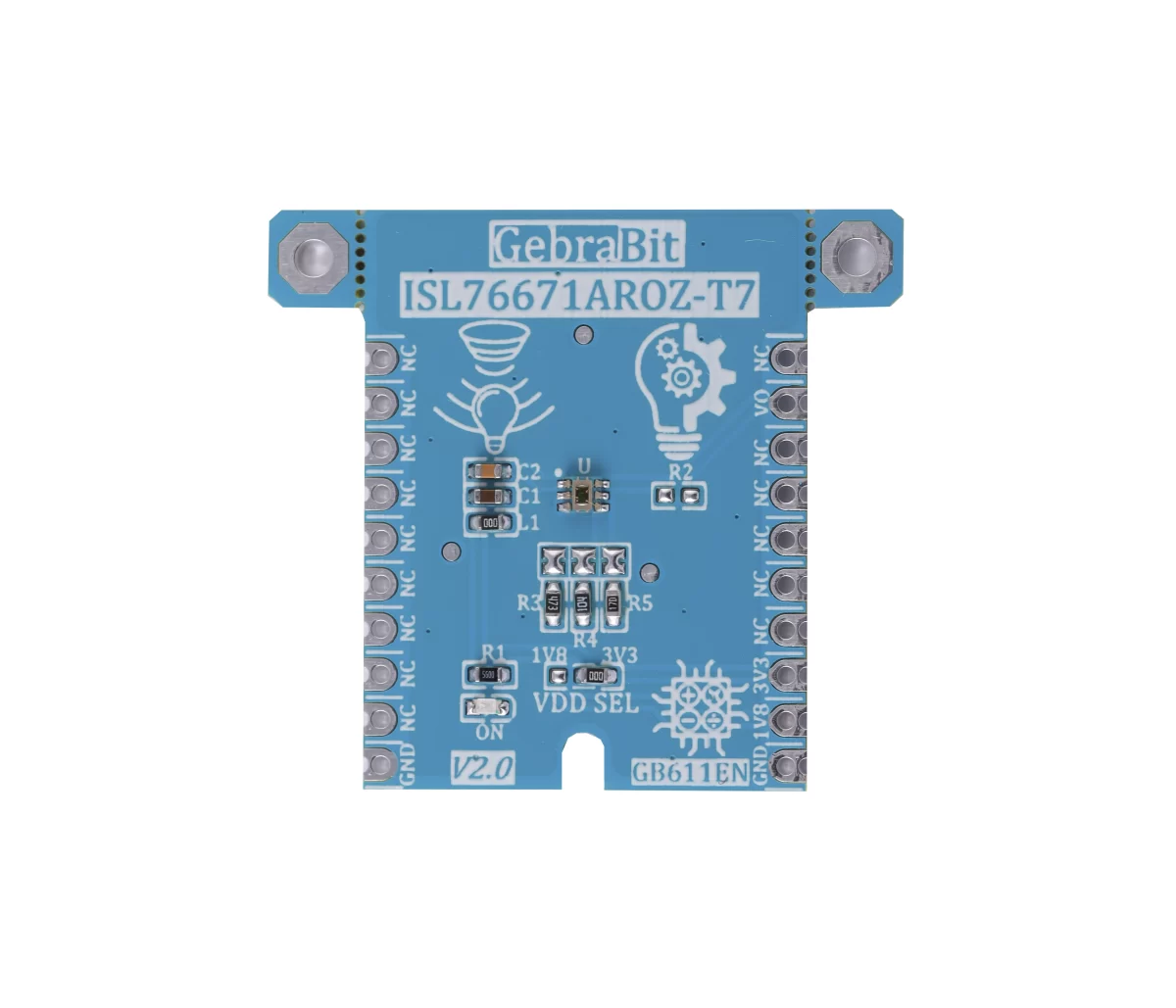

GebraBit ISL76671AROZ-T7



  • Module type: Ambient light module
  • Module Supply Voltage: 1.8 V or 3.3 V
  • Output type: Analog-Voltage
  • Operating Range: 0.01 to 100 lux
  • Wavelength Range: ~380 to ~600 nm
  • Peak Wavelength: 550 nm
  • Package: GebraBit small (36.29mm x 32.72mm)



Add to wishlist
Compare
Add to wishlist
SKU: GB611EN Categories: Enviromental, Light, Sensors
Share
  • Description
  • Specifications
  • Documents
Description

OVERVIEW

GebraBit ISL76671AROZ-T7 Is a light-to-voltage silicon optical module close to the human eye spectral response with rejecting UV and IR light.

GebraBit ISL76671AROZ-T7 module can operate with “1V8” or “3V3” supply Voltages by Considered “VDD SEL” jumper selector.

The User can set the output scaling of the BHC160FVC-TR sensor by using considered onboard jumpers.

Sensor Output data is available as the analog voltage on Gebrabit BHC160FVC-TR “VO” pin.

The ISL76671 is a low-cost, light-to-voltage silicon optical sensor combining a photodiode array, a non-linear current amplifier, and a micro-power op-amp on a single monolithic IC. Similar to the human eye, the photodiode array has peak sensitivity at 550nm and spans the wavelength range from 400nm to 600nm, rejecting UV and IR light. The input luminance range is from 0.01 lux to 100 lux.

WARNING: FOR ACCURATE INFORMATION ABOUT ICs ABSOLUTE MAXIMUM RATINGS AND ITS PRECIOUS  CHARACTERISTICS RANGES, USERS MUST CERTAINLY REFER TO ICs MANUFACTURE DATASHEET.



Key Features

  • User-selectable module power supply voltage between 1V8 and 3V3
  • Output scaling adjustable by jumpers
  • Analog voltage OUTPUT
  • On Board, ON/OFF LED indicator
  • Pin Compatible with GEBRABUS
  • GEBRABIT small package
  • It can be used as a daughter board of GEBRABIT MCU Modules
  • Featuring Castellated pad (Assembled as SMD Part)
  • Separatable screw parts to reduce the size of the board
Specifications
Part Number

GebraBit ISL76671AROZ-T7

Short Description

GebraBit ISL76671AROZ-T7 is an Analog ambient light module, with ~380 to ~600 nm measurement range and Analog-Voltage output

Product Type

Module

Module Supply Voltage

1.8 V or 3.3 V

Module Logic Voltage

Refer to Datasheet

Module Current Consumption

10 mA to 30 mA (Typ. 20 mA)

Module Output Type

Analog-Voltage

Operating Range

0.01 to 100 lux

resolution

–

GAIN

–

Peak Wavelength

550 nm

Wavelength Range

~380 to ~600 nm

Package

GebraBit small (36.29mm x 32.72mm)

Brand

GebraBit

Documents

Documents Link

  • Schematic (.pdf)
  • Module Layout (.pdf)
  • GebraBit ISL76671AROZ-T7 Datasheet
  • Wiki Link (Source Code and Tutorial)
DISCLAIMER: GEBRABIT PRODUCTS ARE INTENDED SOLELY FOR RESEARCH & DEVELOPMENT PURPOSES. GEBRABIT EXPLICITLY DECLARES IT HAS NO RESPONSIBILITY IF USERS UTILIZE THEM IN ALL OTHER SENSITIVE AND PRECISE APPLICATIONS THAT CAUSE FINANCIAL AND HUMAN LIFE DAMAGE.
