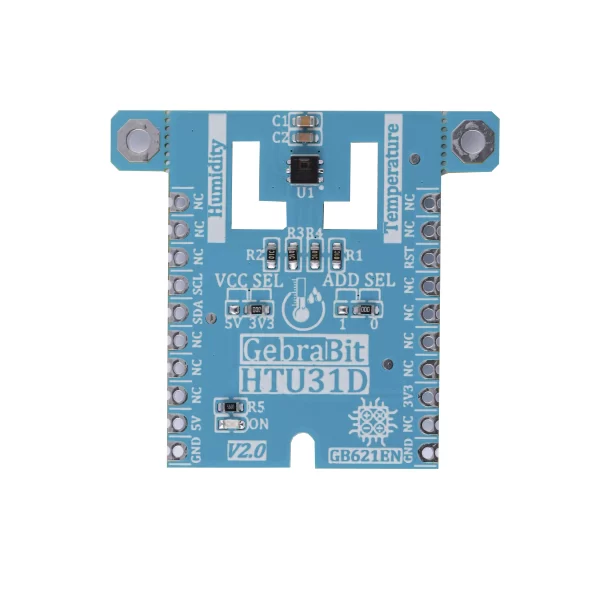

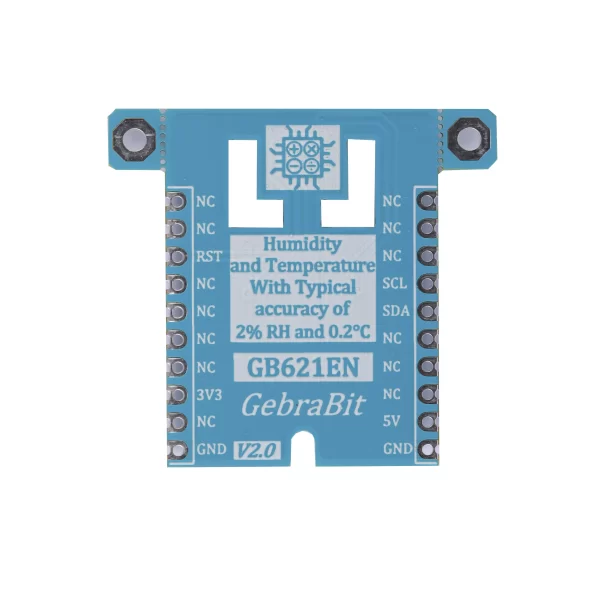

GebraBit HTU31D
Back to products
Next product
GEBRABIT Conductivity Module
GebraBit

GebraBit MAX31865



  • Module type: PT100 to PT1000 RTD module
  • Module Supply Voltage: 5.0 V
  • Output Type: Digital-SPI
  • Temperature range: -200°C to +800°C
  • Temperature Accuracy: ± 0.5°C
  • Package: GebraBit small (36.29mm x 32.72mm)



Add to wishlist
Compare
Add to wishlist
SKU: GB622EN Categories: Enviromental, Humidity & Temptrature, Products, Sensors, Temptrature
Share
  • Description
  • Specifications
  • Documents
Description

OVERVIEW

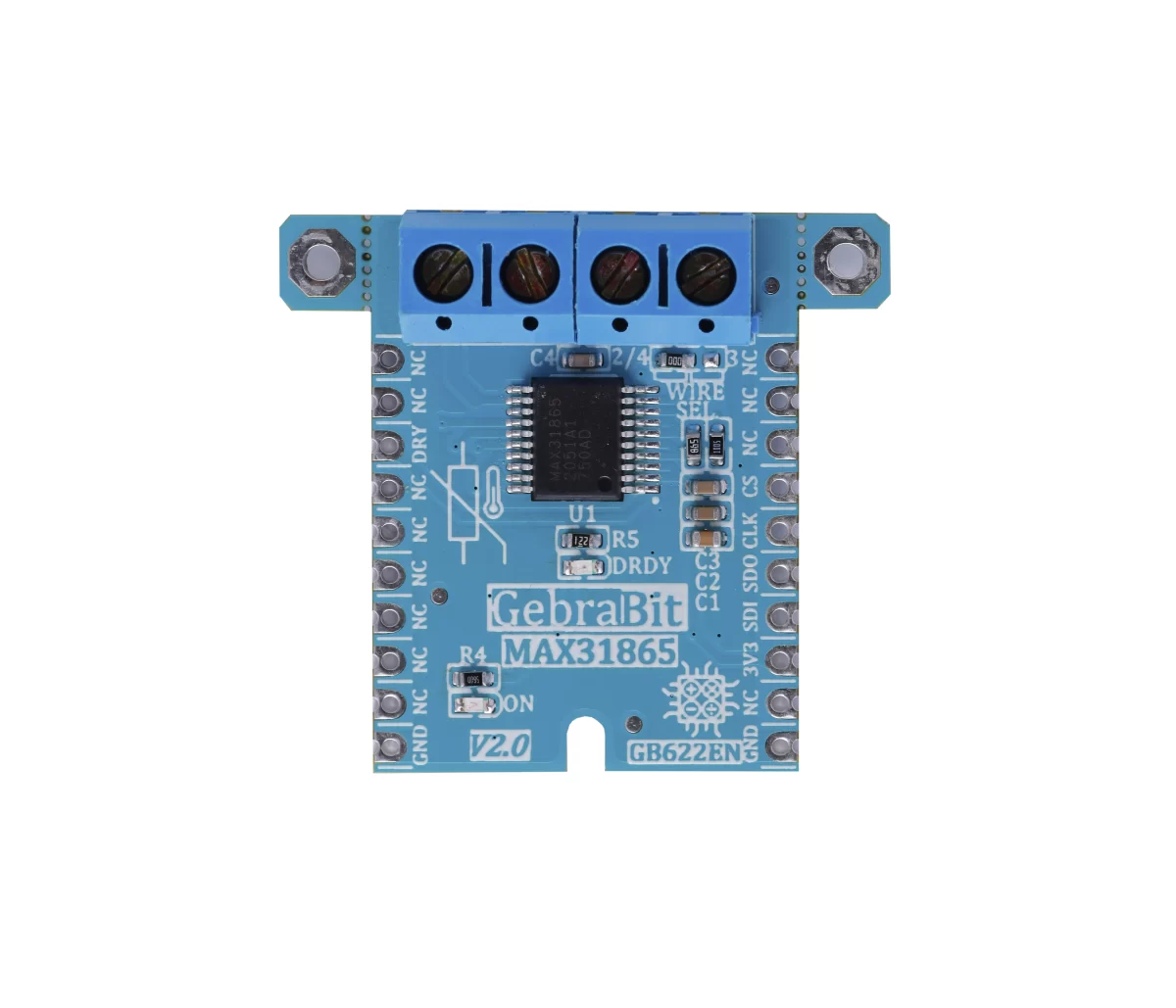

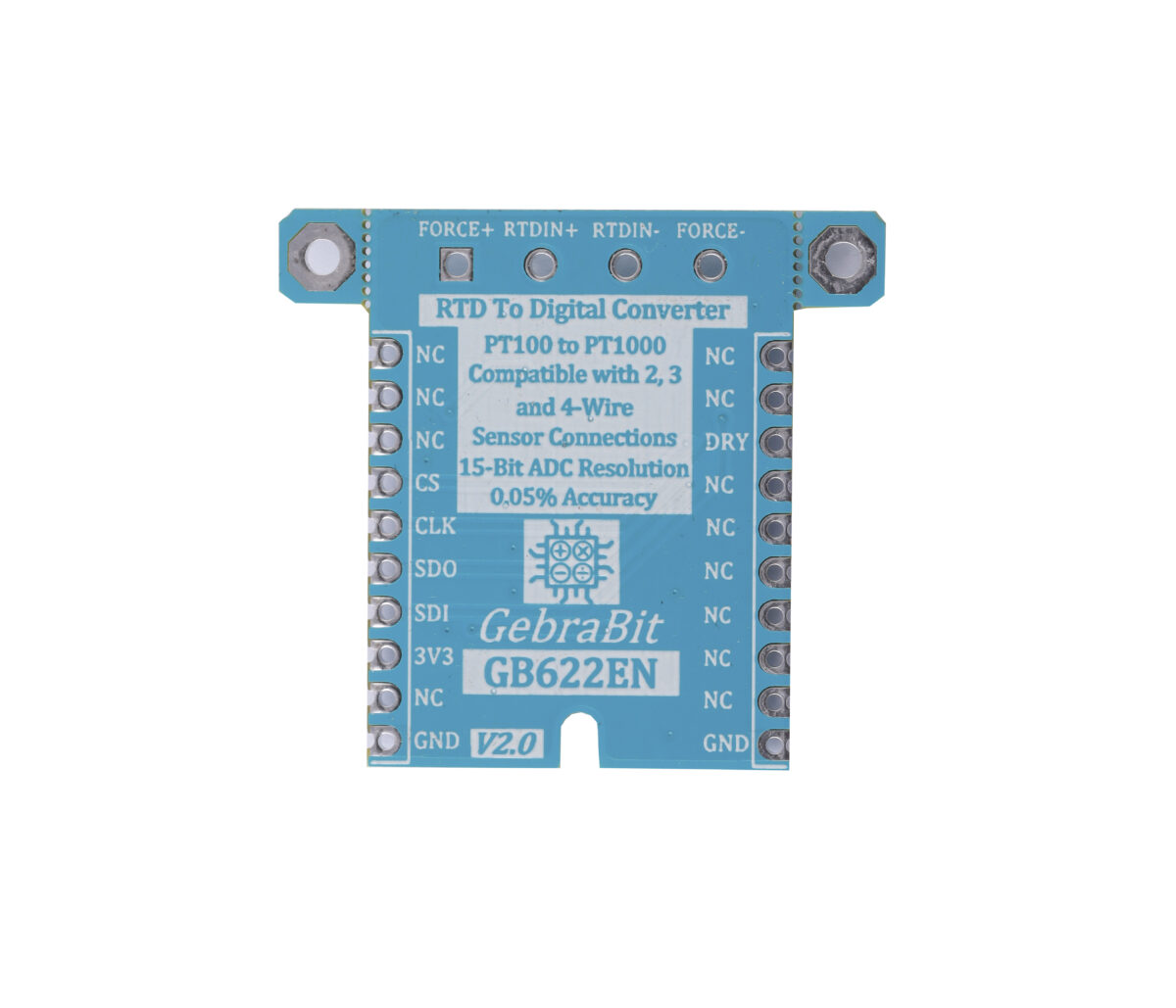

GebraBit MAX31865 is a sophisticated RTD to digital converter with a built in 15 bit analog to digital converter (ADC) and SPI communication interface.

GebraBit MAX31865 module operate with “3V3” supply Voltage.

GebraBit MAX31865 is optimized to work with PT100 through PT1000 platinum resistance temperatures (RTDs) or thermistors with 2, 3 or 4 wire topology. users can easily select the RTDs wire topology with on board jumper selector and connections of RTD wires through screw terminal block. Refer to bottom image and table for better understanding of connection methods.

Users can connect the PT100 through PT1000 over Screw Terminal Block.

Fault detections Such as Open RTD Element, RTD Shorted to Out of Range Voltage, or Short Across RTD Element is the other features of this module.

GebraBit MAX31865 has an easy-to-use resistance-to-digital converter optimized for platinum resistance temperature detectors (RTDs). An external resistor sets the sensitivity for the RTD being used, and a precision delta-sigma ADC converts the ratio of the RTD resistance to the reference resistance into digital form. The MAX31865’s inputs are protected against overvoltage faults as large as ±45V.
Programmable detection of RTD and cable open and short conditions is included.

WARNING: FOR ACCURATE INFORMATION ABOUT ICs ABSOLUTE MAXIMUM RATINGS AND ITS PRECIOUS  CHARACTERISTICS RANGES, USERS MUST CERTAINLY REFER TO ICs MANUFACTURE DATASHEET.



Key Features

  • User selectable RTDs 2, 3 or 4 wire topology via input connector and on board jumper select
  • On Board, ON/OFF LED indicator
  • On Board, DRDY LED indicator
  • Pin Compatible with GebraBus
  • GebraBit small package
  • It can be used as a daughter board of GebraBit MCU Modules
  • Featuring Castellated pad (Assembled as SMD Part)
  • Separatable screw parts to reduce the size of the board
Specifications
Part Number

GebraBit MAX31865

Short Description

GebraBit MAX31865 is a PT100 to PT1000 RTD module, with Digital-SPI output and -200°C to +800°C measurement range

Product Type

Module

Module Supply Voltage

5.0 V

Module Logic Voltage

5.0 V

Module Current Consumption

10 mA to 30 mA (Typ. 20 mA)

Output Type

Digital-SPI

Temperature range

-200°C to +800°C

Temperature Accuracy

± 0.5°C

Temperature Resolution

0.03125°C

Humidity range

–

Relative Humidity Accuracy

–

Humidity Resolution

–

Package

GebraBit small (36.29mm x 32.72mm)

Brand

GebraBit

Documents

Documents Link

  • Schematic (.pdf)
  • Module Layout (.pdf)
  • MAX31865 Datasheet
  • Wiki Link (Source Code and Tutorial)
DISCLAIMER: GEBRABIT PRODUCTS ARE INTENDED SOLELY FOR RESEARCH & DEVELOPMENT PURPOSES. GEBRABIT EXPLICITLY DECLARES IT HAS NO RESPONSIBILITY IF USERS UTILIZE THEM IN ALL OTHER SENSITIVE AND PRECISE APPLICATIONS THAT CAUSE FINANCIAL AND HUMAN LIFE DAMAGE.
