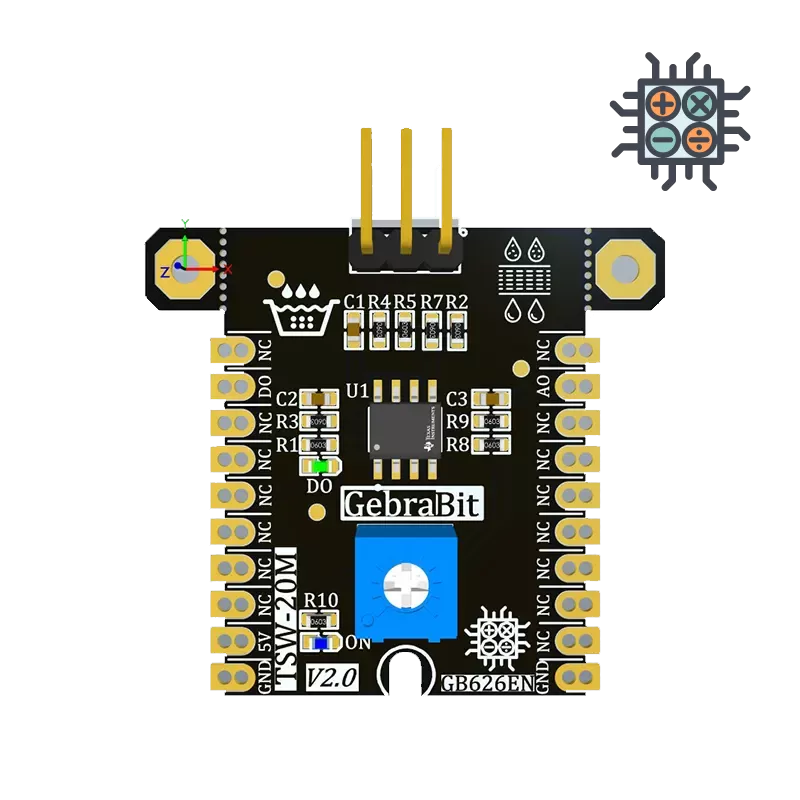

GEBRABIT TSW-20M Module



  • Module type: Liquid solution turbidity detector
  • Package: GebraBit small (36.29mm x 32.72mm)



Add to wishlist
Compare
Add to wishlist
SKU: GB626EN Categories: Enviromental, Sensors, Water
Share
  • Description
  • Reviews (0)
  • Documents
  • Specifications
Description

OVERVIEW

GEBRABIT TSW-20M module is a liquid solution turbidity detector.

The TSW-20 module is An optical sensor for washing machines that measure the product of turbid water density or an extraneous matter concentration using the refraction of wavelength between photo transistor and diode. Using an optical Transistor and optical diodes, an optical washing machine sensor measures the amount of light coming from the source of the light to the light receiver to calculate water turbidity.

The sensor operates on the principle that when light is passed through a sample of water, the amount of light transmitted through the sample is dependent on the amount of soil in the water. As the soil level increases, the amount of transmitted light decreases. The turbidity sensor measures the amount of transmitted light to determine the turbidity of the wash water. These turbidity measurements are supplied to the washer controller, which makes decisions on how long to wash in all the cycles. These decisions are made based on a comparison between clean water measurements (taken at the beginning of the wash cycle) and the wash water turbidity measurement taken at the end of each wash cycle. By measuring the turbidity of the wash water, the washing machine can conserve energy on lightly soiled loads by only washing as long as necessary.

Key Features

  • On Board, ON/OFF LED indicator
  • Board LED indicator for OUTPUT Signal
  • GEBRABIT Pin Compatible with GEBRABUS
  • GEBRABIT small package
  • It can be used as a daughter board of GEBRABIT MCU Modules
  • Featuring Castellated pad (Assembled as SMD Part)
  • Separatable screw parts to reduce the size of the board



Documents Link



Project and Source Code

Schematic (.Pdf)

Module Layout (.Pdf)

Datasheet

Module Overview

Reviews (0)

Reviews

There are no reviews yet.

Be the first to review “GEBRABIT TSW-20M Module” Cancel reply

Your email address will not be published. Required fields are marked *

Documents

  • Schematic (.pdf)
  • Module Overview
Specifications

Warning: call_user_func() expects parameter 1 to be a valid callback, no array or string given in /home/gebrabit/public_html/wp-content/themes/woodmart/woocommerce/single-product/tabs/tabs.php on line 68
DISCLAIMER: GEBRABIT PRODUCTS ARE INTENDED SOLELY FOR RESEARCH & DEVELOPMENT PURPOSES. GEBRABIT EXPLICITLY DECLARES IT HAS NO RESPONSIBILITY IF USERS UTILIZE THEM IN ALL OTHER SENSITIVE AND PRECISE APPLICATIONS THAT CAUSE FINANCIAL AND HUMAN LIFE DAMAGE.
