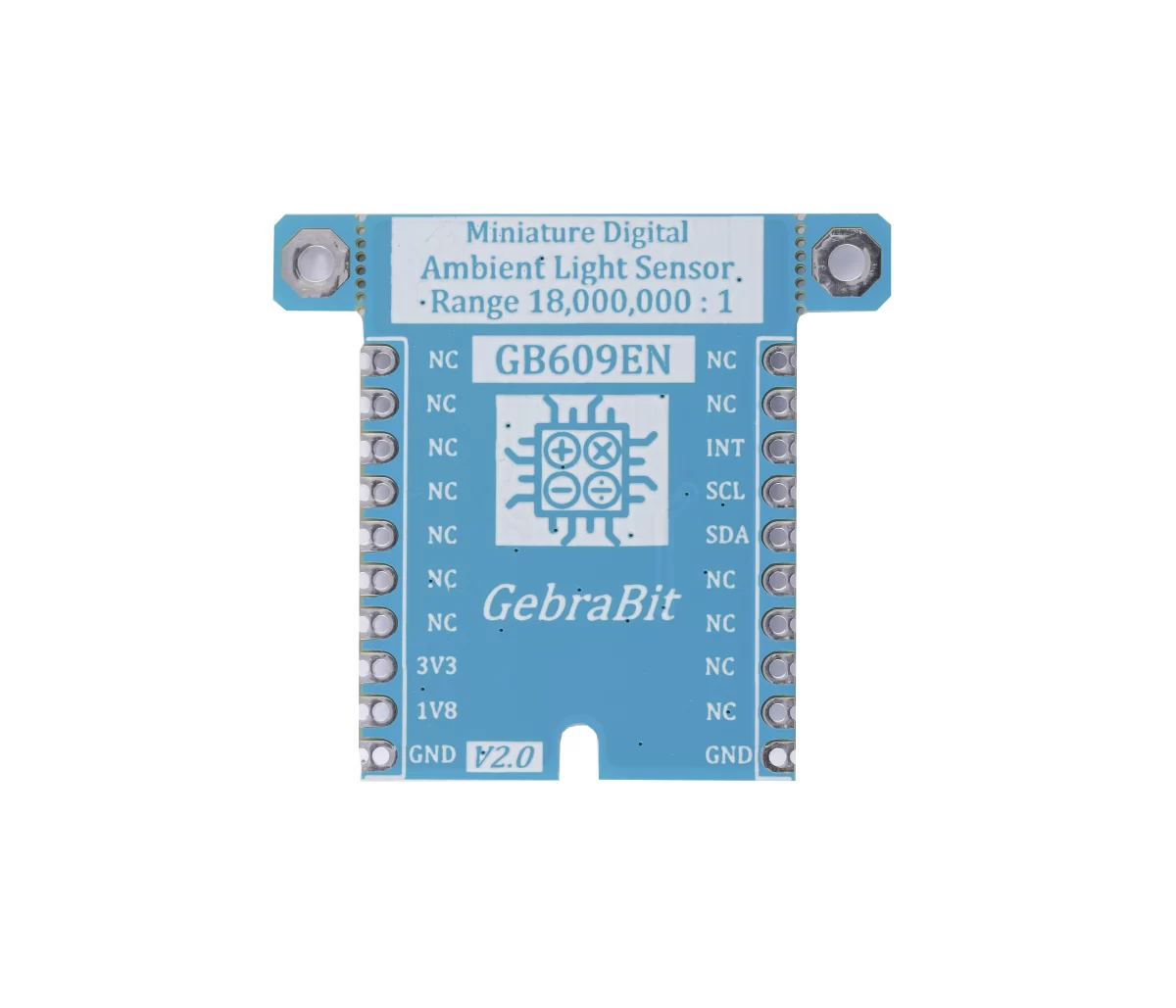

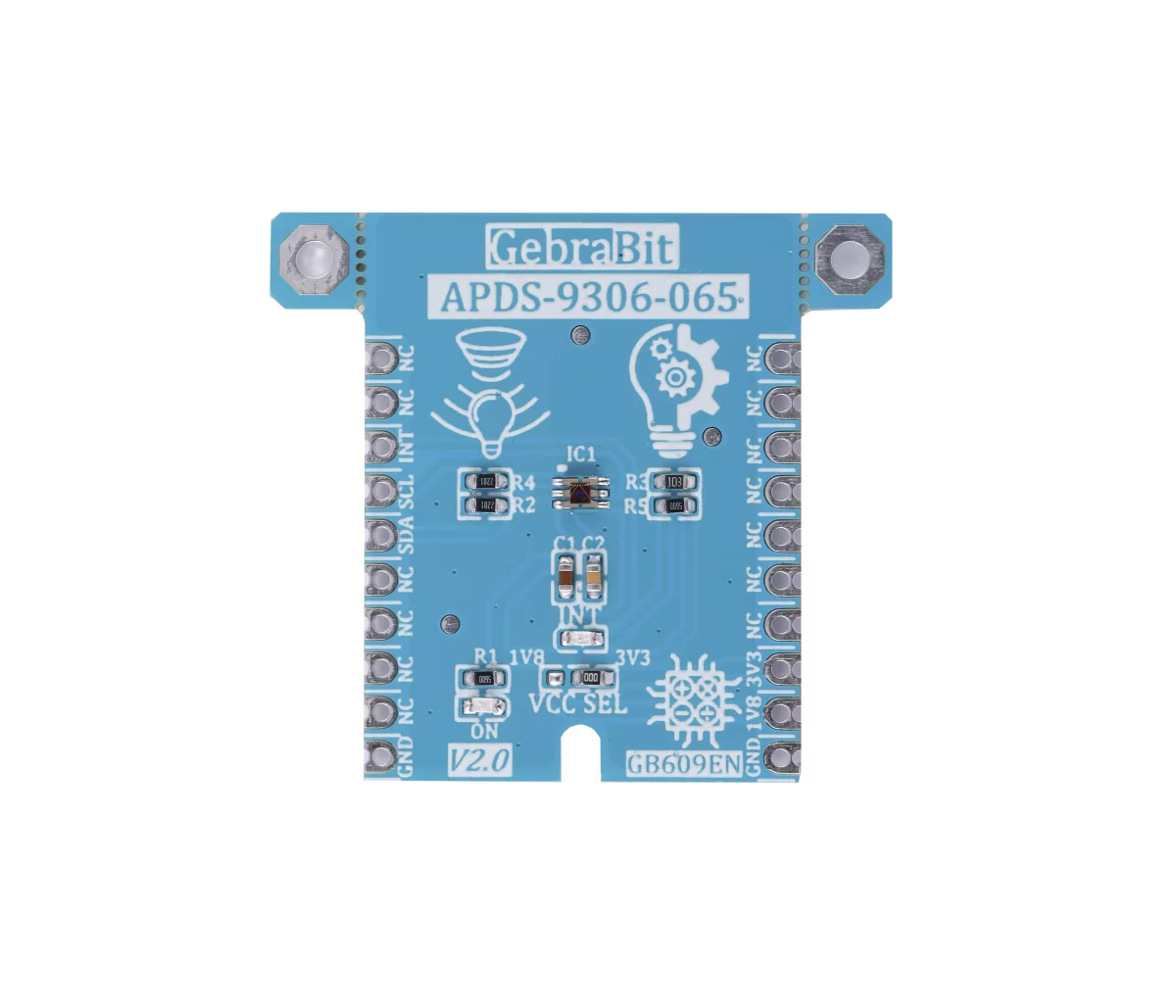

GebraBit APDS-9306-065



  • Module type: Ambient light module
  • Module Supply Voltage: 1.8 V or 3.3 V
  • Output type: Digital-I2C
  • Wavelength Range: ~420 to ~700nm
  • Peak Wavelength: 560nm
  • Resolution: 20 Bit
  • Data rate: 125SPS to 8kSPS
  • Package: GebraBit small (36.29mm x 32.72mm)



Add to wishlist
Compare
Add to wishlist
SKU: GB609EN Categories: Enviromental, Light, Products, Sensors
Share
  • Description
  • Specifications
  • Documents
Description

OVERVIEW



GebraBit APDS-9306-065 is Digital Ambient Light Sensor that converts light.

GebraBit APDS-9306-065 module can operate with “1V8” or “3V3” supply Voltages by Considered “VDD SEL” jumper selector.

The GebraBit APDS-9306-065 module communicates with the I2C protocol and features a LED indicator for Dedicated Interrupt Pin.

APDS-9306-065 is a low-voltage Sensor that converts light intensity to digital signal output with an I2C interface. It consists of a photodiode, ADC, oscillator, and power-on reset to ensure consistent start-up. The APDS-9306-065 approximates the human eye response, providing a direct read-out, where the output count is proportional to the ambient light level. Low light functionality enables operation behind darkened glass.

WARNING: FOR ACCURATE INFORMATION ABOUT ICS ABSOLUTE MAXIMUM RATINGS AND ITS PRECIOUS  CHARACTERISTICS RANGES, USERS MUST CERTAINLY REFER TO ICS MANUFACTURE DATASHEET.

Key Features

  • User-selectable module power supply voltage between 1V8 and 3V3
  • I2C interface for reading data and configuring the sensor
  • LED indicator for Dedicated Interrupt Pin
  • On Board, ON/OFF LED indicator
  • Pin Compatible with GEBRABUS
  • GEBRABIT small package
  • It can be used as a daughter board of GEBRABIT MCU Modules
  • Featuring Castellated pad (Assembled as SMD Part)
  • Separatable screw parts to reduce the size of the board
Specifications
Part Number

GebraBit APDS-9306-065

Short Description

GebraBit APDS-9306-065 is a 20-Bit Digital ambient light module, with ~420 to ~700 nm measurement range and Digital-I2C output

Product Type

Module

Module Supply Voltage

1.8 V or 3.3 V

Module Logic Voltage

Refer to Datasheet

Module Current Consumption

10 mA to 30 mA (Typ. 20 mA)

Module Output Type

Digital-I2C

Operating Range

000, 000 : 1, 18

resolution

20-Bit

GAIN

18X, 1X, 3X, 6X, 9X

Peak Wavelength

560 nm

Wavelength Range

~420 to ~700 nm

Package

GebraBit small (36.29mm x 32.72mm)

Brand

GebraBit

Documents

Documents Link

  • Schematic (.pdf)
  • Module Layout (.pdf)
  • APDS-9306-065 Datasheet
  • Wiki Link (Source Code and Tutorial)
DISCLAIMER: GEBRABIT PRODUCTS ARE INTENDED SOLELY FOR RESEARCH & DEVELOPMENT PURPOSES. GEBRABIT EXPLICITLY DECLARES IT HAS NO RESPONSIBILITY IF USERS UTILIZE THEM IN ALL OTHER SENSITIVE AND PRECISE APPLICATIONS THAT CAUSE FINANCIAL AND HUMAN LIFE DAMAGE.
