HomeProductsSensorsEnviromental GebraBit DS18B20
Previous product
GebraBit Resistive Soil Moisture
Back to products
Next product
GebraBit MAX31865
GebraBit

GebraBit DS18B20



  • Module type: Thermometer module
  • Module Supply voltage: 3.3 V or 5.0 V
  • Output type: Digital-1-Wire
  • Temperature range: -55°C to +125°C
  • Temperature Accuracy: ± 0.5°C
  • Temperature Resolution: Programmable Resolution from 9 to 12 Bits
  • Package: GebraBit small (36.29mm x 32.72mm)



Add to wishlist
Compare
Add to wishlist
SKU: GB618EN Categories: Enviromental, Humidity & Temptrature, Products, Sensors, Temptrature
Share
  • Description
  • Specifications
  • Documents
Description

OVERVIEW

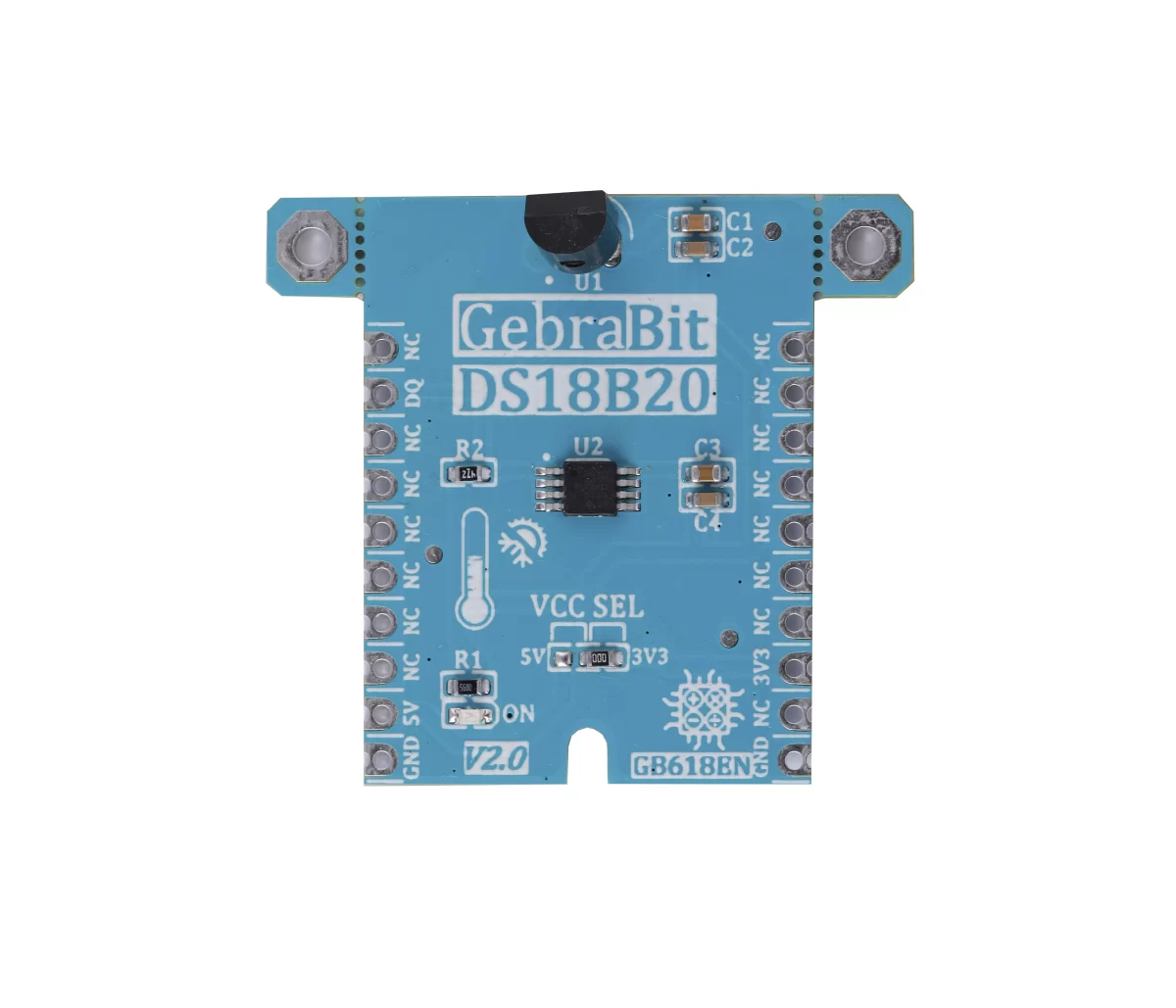

GebraBit DS18B20 is a 1-Wire Digital Thermometer.

On this module, users can assemble SMD, waterproof(DIP) DS18B20 sensor, or both of them. Also, you can easily select module power supply between 3V3 or 5V with a Considered onboard jumper selector that helps to use a wide range of microcontrollers for interfacing with this module.

GebraBit DS18B20 has a digital thermometer that provides 9-bit to 12-bit Celsius temperature measurements and has an alarm function with nonvolatile user-programmable upper and lower trigger points. The DS18B20 communicates over a 1-Wire bus, and Each DS18B20 has a unique 64-bit serial code, which allows multiple DS18B20s to function on the same 1-Wire bus. Thus, using one microprocessor to control many DS18B20s distributed over a large area is simple. Applications that can benefit from this feature include HVAC environmental controls, temperature monitoring systems inside buildings, equipment, or machinery, and process monitoring and control systems.

WARNING: FOR ACCURATE INFORMATION ABOUT ICs ABSOLUTE MAXIMUM RATINGS AND ITS PRECIOUS  CHARACTERISTICS RANGES, USERS MUST CERTAINLY REFER TO ICs MANUFACTURE DATASHEET.

Key Features

  • Ability to assemble sensors with different packages
  • User selectable module power supply voltage between 3V3 and 5V
  • ON/OFF LED indicator
  • Pin Compatible with GEBRABUS
  • GebraBit small package
  • It can be used as a daughter board of GebraBit MCU Modules
  • Featuring Castellated pad (Assembled as SMD Part)
  • Separatable screw parts to reduce the size of the board

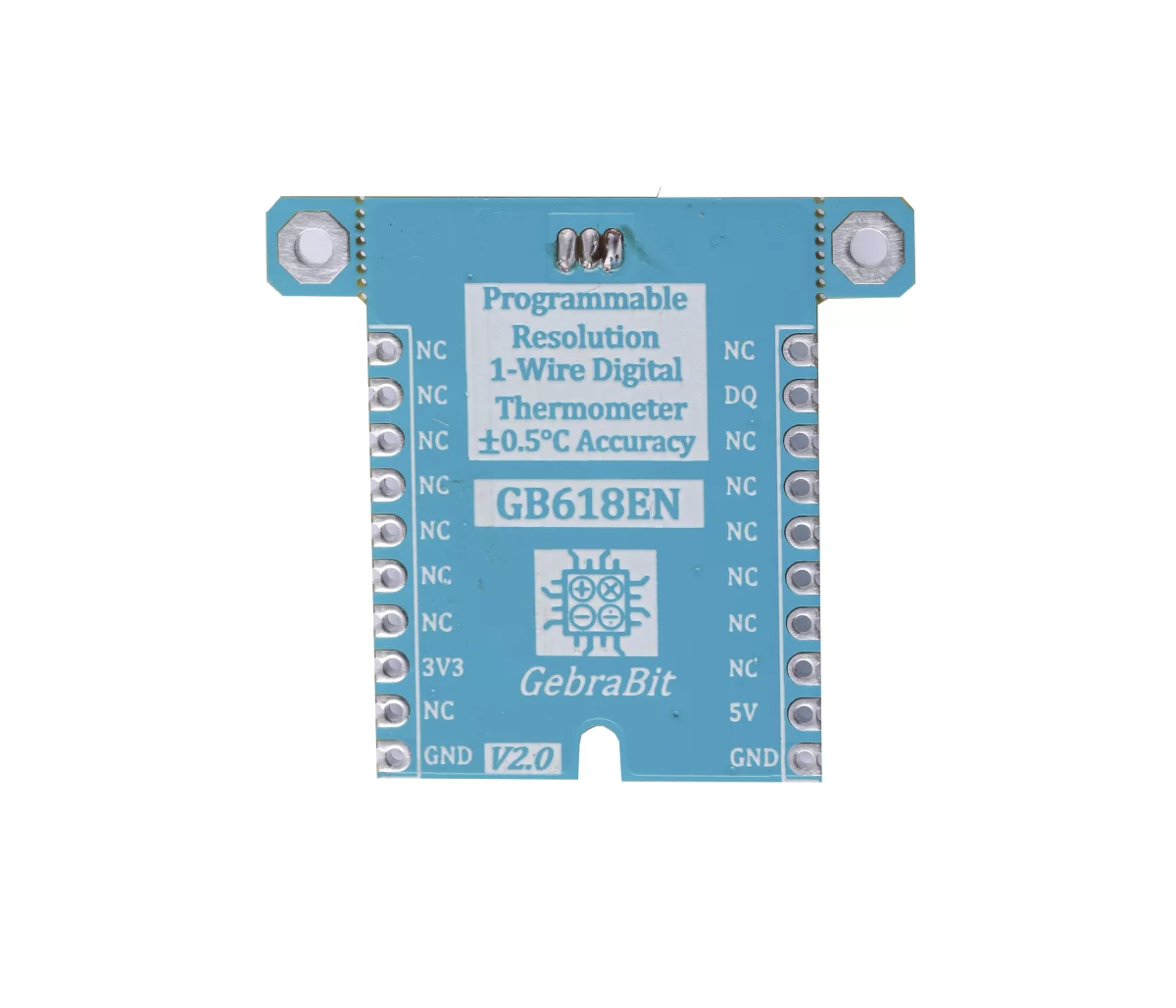

Pinout Diagram



Specifications
Part Number

GebraBit DS18B20

Short Description

GebraBit DS18B20 is a Digital Thermometer module, with Digital-1-Wire output and -55°C to +125°C measurement range

Product Type

Module

Module Supply Voltage

3.3 V or 5.0 V

Module Logic Voltage

3.3 V or 5.0 V

Module Current Consumption

10 mA to 30 mA (Typ. 20 mA)

Output Type

Digital-1-Wire

Temperature range

-55°C to +125°C

Temperature Accuracy

± 0.5°C

Temperature Resolution

Programmable Resolution from 9 Bits to 12 Bits

Humidity range

–

Relative Humidity Accuracy

–

Humidity Resolution

–

Package

GebraBit small (36.29mm x 32.72mm)

Brand

GebraBit

Documents

Documents Link

  • Schematic (.pdf)
  • Module Layout (.pdf)
  • DS18B20 Datasheet
  • Wiki Link (Source Code and Tutorial)
DISCLAIMER: GEBRABIT PRODUCTS ARE INTENDED SOLELY FOR RESEARCH & DEVELOPMENT PURPOSES. GEBRABIT EXPLICITLY DECLARES IT HAS NO RESPONSIBILITY IF USERS UTILIZE THEM IN ALL OTHER SENSITIVE AND PRECISE APPLICATIONS THAT CAUSE FINANCIAL AND HUMAN LIFE DAMAGE.
