GebraBit DPS310XTSA1



  • Module type: Barometric Pressure module
  • Module Supply voltage: 1.8 V or 3.3 V
  • Output type: Digital – I2C or SPI
  • Pressure range: 300 hpa to 1200 hpa
  • Absolute Pressure Accuracy: ±1 hpa
  • Pressure Resolution: 0.06 Pa
  • Temperature range: 0°C to +65°C
  • Temperature Accuracy: ± 0.5°C
  • Package: GebraBit small (36.29mm x 32.72mm)



Add to wishlist
Compare
Add to wishlist
SKU: GB637EN Categories: Pressure, Products, Sensors
Share
  • Description
  • Specifications
  • Documents
Description

OVERVIEW

GebraBit DPS310XTSA1 is a Digital XENSIVTM Barometric Pressure and temperature module.

GebraBit DPS310XTSA1 module can operate with “1V8” or “3V3” supply Voltages by Considered “VDD SEL” jumper selector. Also there is an another jumper named “VDIO SEL “, which is regarded to select logic level voltage of module I/O pins between “1V8” or “3V3”. This feature helps to use a wide range of microcontrollers for interfacing with this module.

User can interface with GebraBit DPS310XTSA1 by either I2C or SPI protocol. This is achieved by dedicated four jumper selectors on the top right of the GebraBit DPS310XTSA1 module. Furthermore, the last jumper selector (Fifth) is considered for setting the I2c address.

DPS310XTSA1 is a Digital XENSIVTM Barometric Air Pressure Sensor with high accuracy and low current consumption, capable of measuring pressure and temperature. The pressure sensor element is based on a capacitive sensing principle which guarantees high precision during temperature changes. The small package makes the DPS310 ideal for mobile applications and wearable devices.

WARNING: FOR ACCURATE INFORMATION ABOUT ICs ABSOLUTE MAXIMUM RATINGS AND ITS PRECIOUS CHARACTERISTICS RANGES, USERS MUST CERTAINLY REFER TO ICs MANUFACTURE DATASHEET.

Key Features

  • User-selectable module power supply voltage between 1V8 and 3V3
  • User-selectable module I/O logic voltage between 1V8 and 3V3
  • User-selectable interface protocol (I2C or SPI)
  • User-selectable I2C address
  • On Board, ON/OFF LED indicator
  • GebraBit Pin Compatible with GEBRABUS
  • GebraBit small package
  • It can be used as a daughter board of GebraBit MCU Modules
  • Featuring Castellated pad (Assembled as SMD Part)
  • Separatable screw parts to reduce the size of the board

Pinout Diagram



GebraBit DPS310XTSA1 pinout



Module Overview



GebraBit DPS310XTSA1 parts

Specifications
Part Number

GebraBit DPS310XTSA1

Short Description

GebraBit DPS310XTSA1 is a Digital Barometric Pressure module, with Digital – I2C or SPI output and 300 hpa to 1200 hpa and 0°C to +65°C measurment range

Board Type

Module

Module Supply Voltage

1.8 V or 3.3 V

Module Logic Voltage

1.8 V or 3.3 V

Module Current Consumption

10 mA to 30 mA (Typ. 20 mA)

Output Type

Digital – I2C or SPI

Pressure range

300 hpa to 1200 hpa

Pressure Accuracy

–

Absolute Pressure Accuracy

±1 hpa

Relative Pressure Accuracy

±0.06 hpa

Pressure Resolution

0.06 Pa

Pressure Sensivity

–

Temperature range

0°C to +65°C

Temperature Accuracy

± 0.5°C

Temperature Resolution

0.01°C

Humidity range

–

Relative Humidity Accuracy

–

Humidity Resolution

–

Package

GebraBit small (36.29mm x 32.72mm)

Brand

GebraBit

Documents

  • Schematic (.pdf)
  • Module Layout (.pdf)
  • DPS310XTSA1 Datasheet
  • Wiki Link (Source Code and Tutorial)
DISCLAIMER: GEBRABIT PRODUCTS ARE INTENDED SOLELY FOR RESEARCH & DEVELOPMENT PURPOSES. GEBRABIT EXPLICITLY DECLARES IT HAS NO RESPONSIBILITY IF USERS UTILIZE THEM IN ALL OTHER SENSITIVE AND PRECISE APPLICATIONS THAT CAUSE FINANCIAL AND HUMAN LIFE DAMAGE.

Related products

Compare
Close

GebraBit MAX30003


  • Module type: Biopotential Measurement and Heart Rate Monitoring module
  • Module Supply Voltage: 3V3
  • Output Type: Digital - SPI
  • Number Of Channels: 1
  • Operating Range: 0.01 to 64k lux
  • ADC Resolution: 18 Bit
  • Data Rate: 125SPS to 512SPS
  • Package: GebraBit small (36.29mm x 32.72mm)

Add to wishlist
Read more
Quick view
Compare
Close

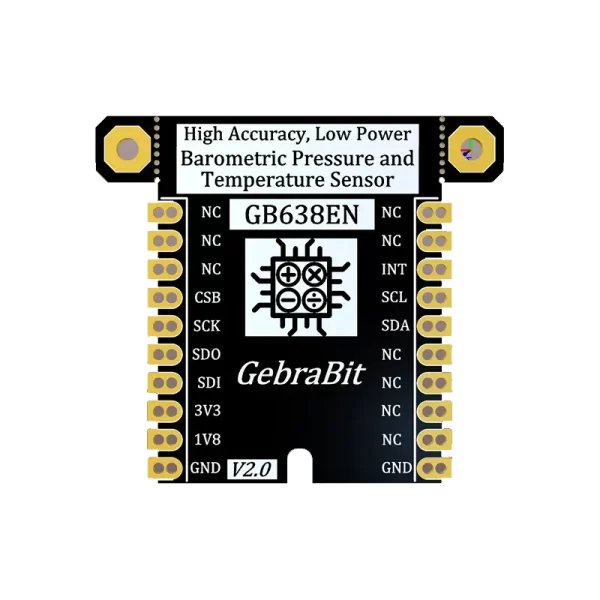

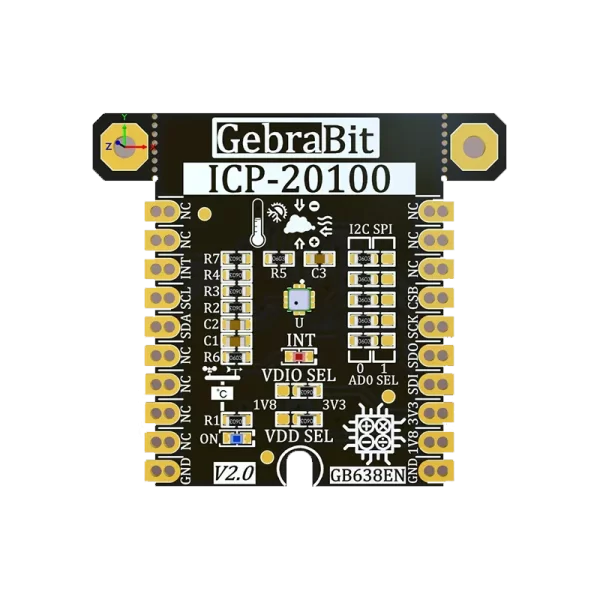

GebraBit ICP-20100


  • Module type: Barometric Pressure and Temperature module
  • Module Supply Voltage: 1.8 V or 3.3 V
  • Output type: Digital – I2C or I3C or SPI
  • Pressure range: 30 to 110 kpa
  • Pressure Resolution: 20 Bit
  • Operating temperature range: -40°C to +85°C
  • Package: GebraBit small (36.29mm x 32.72mm)

Add to wishlist
Read more
Quick view
Compare
Close

GebraBit ADS1191


  • Module type: Biopotential Measurement module
  • Module Supply Voltage: 3V3 or 5V
  • Output type: Digital - SPI
  • Number Of Channels: 1
  • ADC Resolution: 16 Bit
  • Data rate: 125SPS to 8kSPS
  • Package: GebraBit medium (36.29mm x 46.18mm)

Add to wishlist
Read more
Quick view
Compare
Close

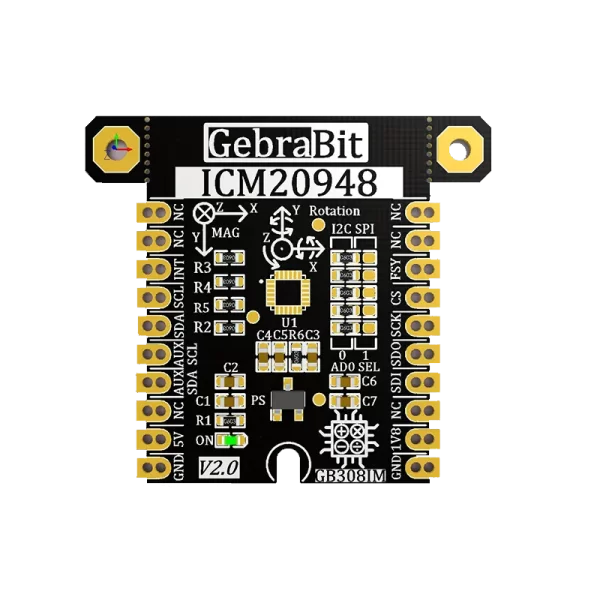

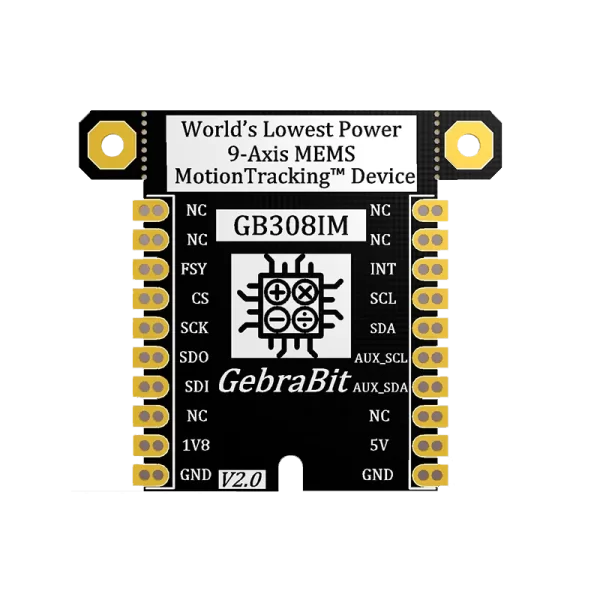

GebraBit ICM20948


  • Module type: Gyroscope, Accelerometer, and Magnetometer module
  • Number of Axis: 9-Axis
  • Output type: Digital-I2C or SPI
  • Accelerometer FSR: ±2, ±4, ±8, ±16(g)
  • Gyroscope FSR: ±250, ±500, ±1000, ±2000(dps)
  • Magnetometer FSR: ±4900 µT
  • Resolution: 16 Bit
  • Package: GebraBit small (36.29mm x 32.72mm)

Add to wishlist
Read more
Quick view
Compare
Close

GebraBit ADS1192


  • Module type: Biopotential Measurement module
  • Number Of Channels: 2
  • Module Supply Voltage: 3V3 or 5V
  • Output type: Digital - SPI
  • ADC Resolution: 16 Bit
  • Data rate: 125SPSP to 8kSPS
  • Package: GebraBit medium (36.29mm x 46.18mm)

Add to wishlist
Read more
Quick view
Compare
Close

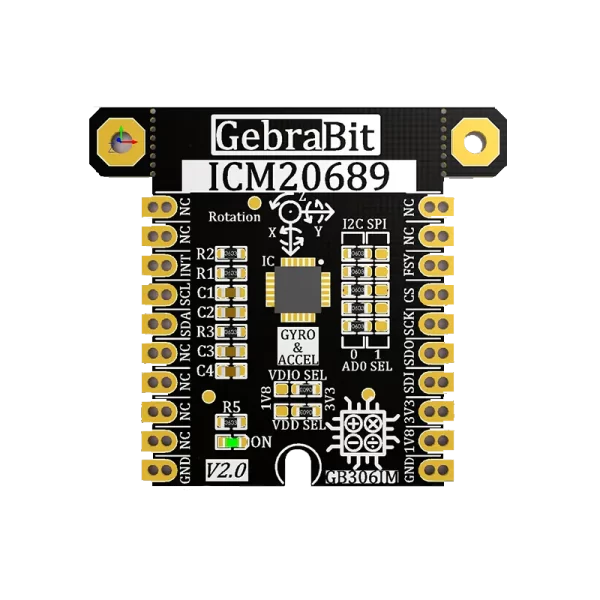

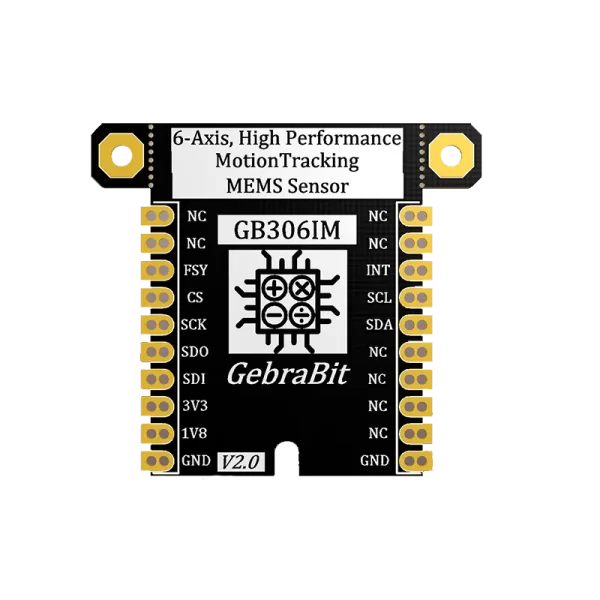

GebraBit ICM20689
