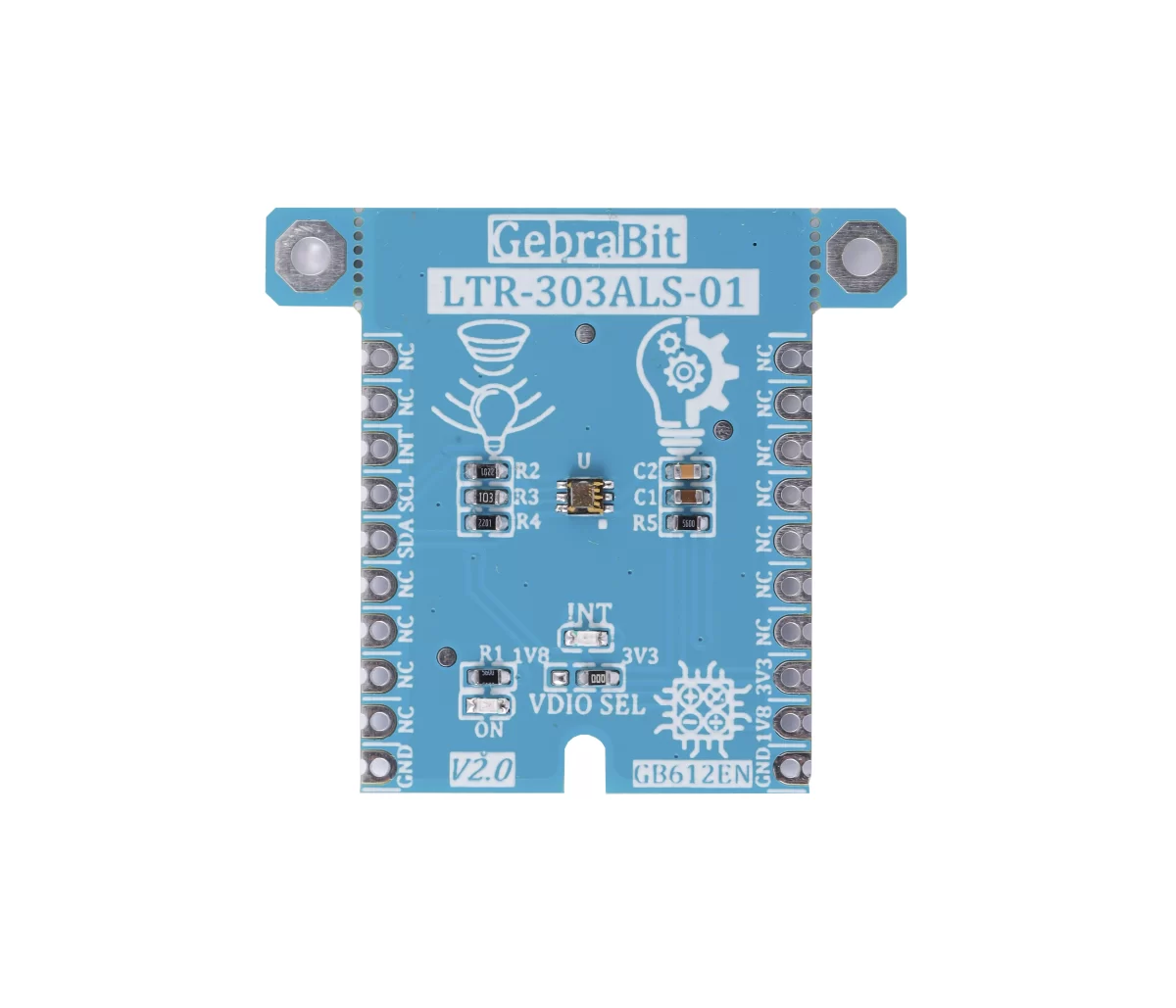

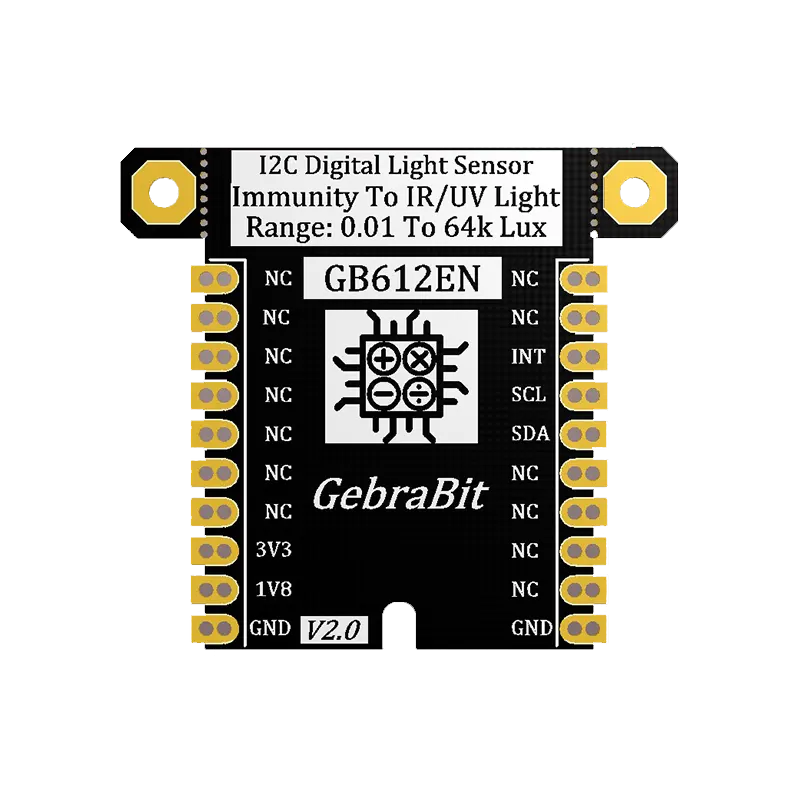

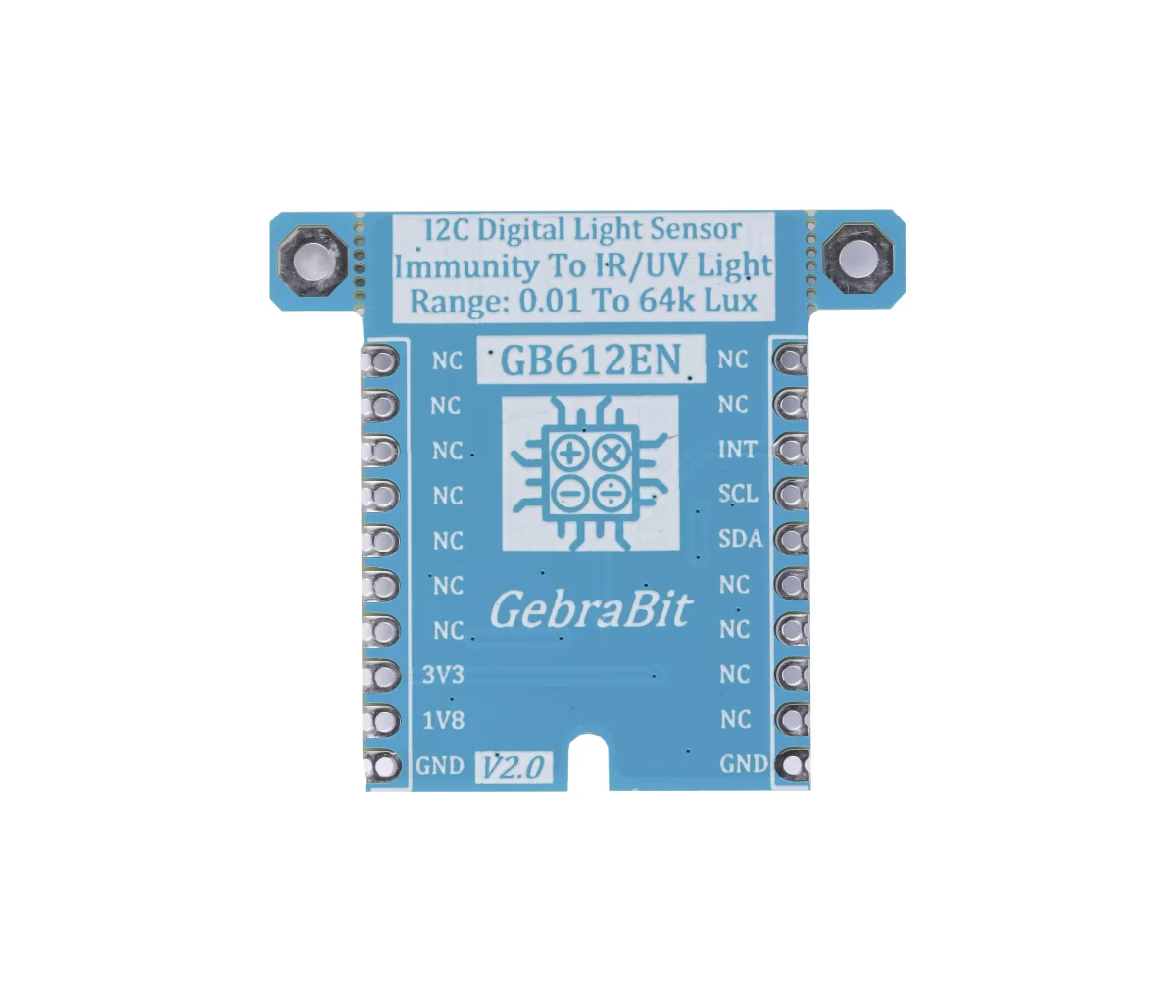

GebraBit LTR-303ALS-01



  • Module type: Ambient light module
  • Module Supply Voltage: 3.3 V
  • Output Type: Digital-I2C
  • Operating Range: 0.01 to 64k lux
  • Wavelength Range: ~360 to ~1100 nm
  • Resolution: 16 Bit
  • Package: GebraBit small (36.29mm x 32.72mm)



Add to wishlist
Compare
Add to wishlist
SKU: GB612EN Categories: Enviromental, Light, Products, Sensors
Share
  • Description
  • Specifications
  • Documents
Description

OVERVIEW



GebraBit LTR-303ALS-01 is a module that converts light intensity to a digital output signal Close to human eye spectral response by rejecting UV/IR light.

GebraBit LTR-303ALS-01  module operates with a “3V3” supply Voltage. a jumper named “VDIO SEL” embedded, which is regarded to select the logic level voltage of module I/O pins between “1V8” or “3V3”. This feature helps to use a wide range of microcontrollers for interfacing with this module.

GebraBit LTR-303ALS-01 communicates with the I2C interface and features a LED indicator for Dedicated Interrupt Pin.

The LTR-303ALS-01 is a low voltage I2C digital light sensor (ALS) in a low-cost miniature chipped lead-free surface mount package. It provides a linear response over a wide dynamic range from 0.01 lux to 64k lux and is well suited to applications under high ambient brightness. There are altogether six gain settings (1X, 2X, 4X, 8X, 48X, and 96X) available for the user to configure.



WARNING: FOR ACCURATE INFORMATION ABOUT ICs ABSOLUTE MAXIMUM RATINGS AND ITS PRECIOUS  CHARACTERISTICS RANGES, USERS MUST CERTAINLY REFER TO ICs MANUFACTURE DATASHEET.



Key Features

  • User-selectable module I/O logic voltage between 1V8 and 3V3
  • On Board, ON/OFF LED indicator
  • I2C interface for reading data and configuring the sensor
  • LED indicator for Dedicated Interrupt Pin
  • Pin Compatible with GEBRABUS
  • GEBRABIT small package
  • It can be used as a daughter board of GEBRABIT MCU Modules
  • Featuring Castellated pad (Assembled as SMD Part)
  • Separatable screw parts to reduce the size of the board
Specifications
Part Number

GebraBit LTR-303ALS-01

Short Description

GebraBit LTR-303ALS-01 is a 16-Bit Digital ambient light module, with ~360 to ~1100 nm measurement range and Digital-I2C output

Product Type

Module

Module Supply Voltage

3.3 V

Module Logic Voltage

1.8 V or 3.3 V

Module Current Consumption

10 mA to 30 mA (Typ. 20 mA)

Module Output Type

Digital-I2C

Operating Range

0.01 to 64k lux

resolution

16-Bit

GAIN

1X, 2X, 48X, 4X, 8X, 96X

Peak Wavelength

~470 nm, ~770 nm

Wavelength Range

~360 to ~1100 nm

Package

GebraBit small (36.29mm x 32.72mm)

Brand

GebraBit

Documents

Documents Link

  • Schematic (.pdf)
  • Module Layout (.pdf)
  • LTR-303ALS-01  Datasheet
  • Wiki Link (Source Code and Tutorial)
DISCLAIMER: GEBRABIT PRODUCTS ARE INTENDED SOLELY FOR RESEARCH & DEVELOPMENT PURPOSES. GEBRABIT EXPLICITLY DECLARES IT HAS NO RESPONSIBILITY IF USERS UTILIZE THEM IN ALL OTHER SENSITIVE AND PRECISE APPLICATIONS THAT CAUSE FINANCIAL AND HUMAN LIFE DAMAGE.
