GebraBit KP229L2920



  • Module type: Pressure module
  • Module Supply Voltage: 5.0 V
  • Output type: Analog-Voltage
  • Pressure range: 10 to 400 kpa
  • Pressure Accuracy: 1.0 kpa
  • Operating temperature range: -40°C to +140°C
  • Package: GebraBit small (36.29mm x 32.72mm)



Add to wishlist
Compare
Add to wishlist
SKU: GB639EN Categories: Pressure, Products, Sensors
Share
  • Description
  • Specifications
  • Documents
Description

OVERVIEW

GebraBit KP229L2920 is an Analog Manifold Air Pressure/Turbo Map Integrated Pressure module.

GebraBit KP229L2920 module operate with “5V” supply Voltage.

GEBRABIT KP229L2920 module has an analog output with a circuit that acts as a low-pass decoupling filter between the sensor IC output and AO of the module.

KP229L2920 is an Analog miniaturized Analog Manifold Air Pressure Sensor IC based on a capacitive principle. It is surface micromachined with a monolithic integrated signal conditioning circuit implemented in BiCMOS technology. The sensor converts pressure into an analog output signal. The sensor has been primarily developed for measuring manifold air pressure but can also be used in other application fields. The device’s high accuracy and sensitivity make it a perfect fit for advanced automotive applications.

WARNING: FOR ACCURATE INFORMATION ABOUT ICs ABSOLUTE MAXIMUM RATINGS AND ITS PRECIOUS CHARACTERISTICS RANGES, USERS MUST CERTAINLY REFER TO ICs MANUFACTURE DATASHEET.

Key Features

  • On Board, ON/OFF LED indicator
  • GEBRABIT Pin Compatible with GEBRABUS
  • GEBRABIT small package
  • It can be used as a daughter board of GEBRABIT MCU Modules
  • Featuring Castellated pad (Assembled as SMD Part)
  • Separatable screw parts to reduce the size of the board



 Pinout Diagram

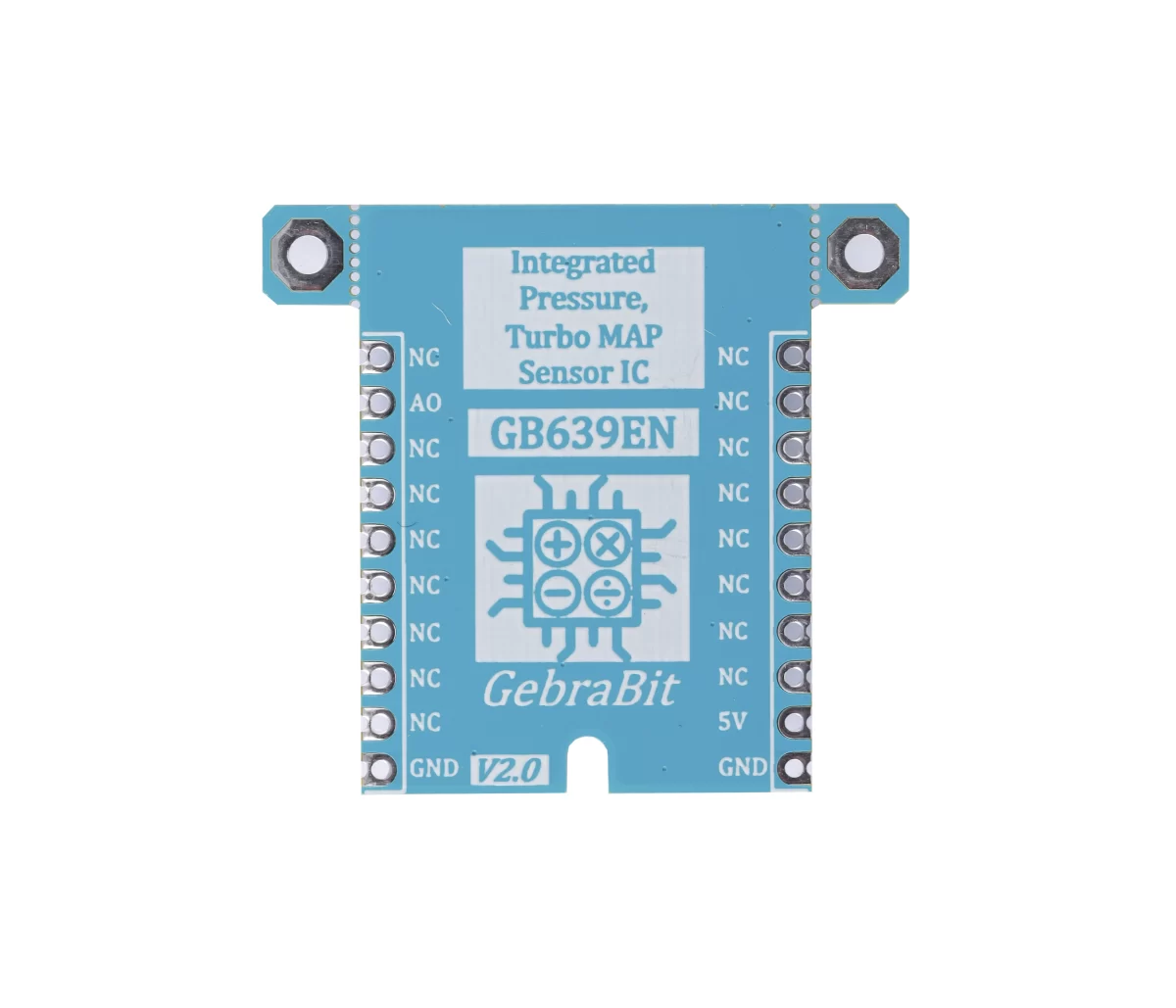

GebraBit KP229L2920 pinout

Module Overview

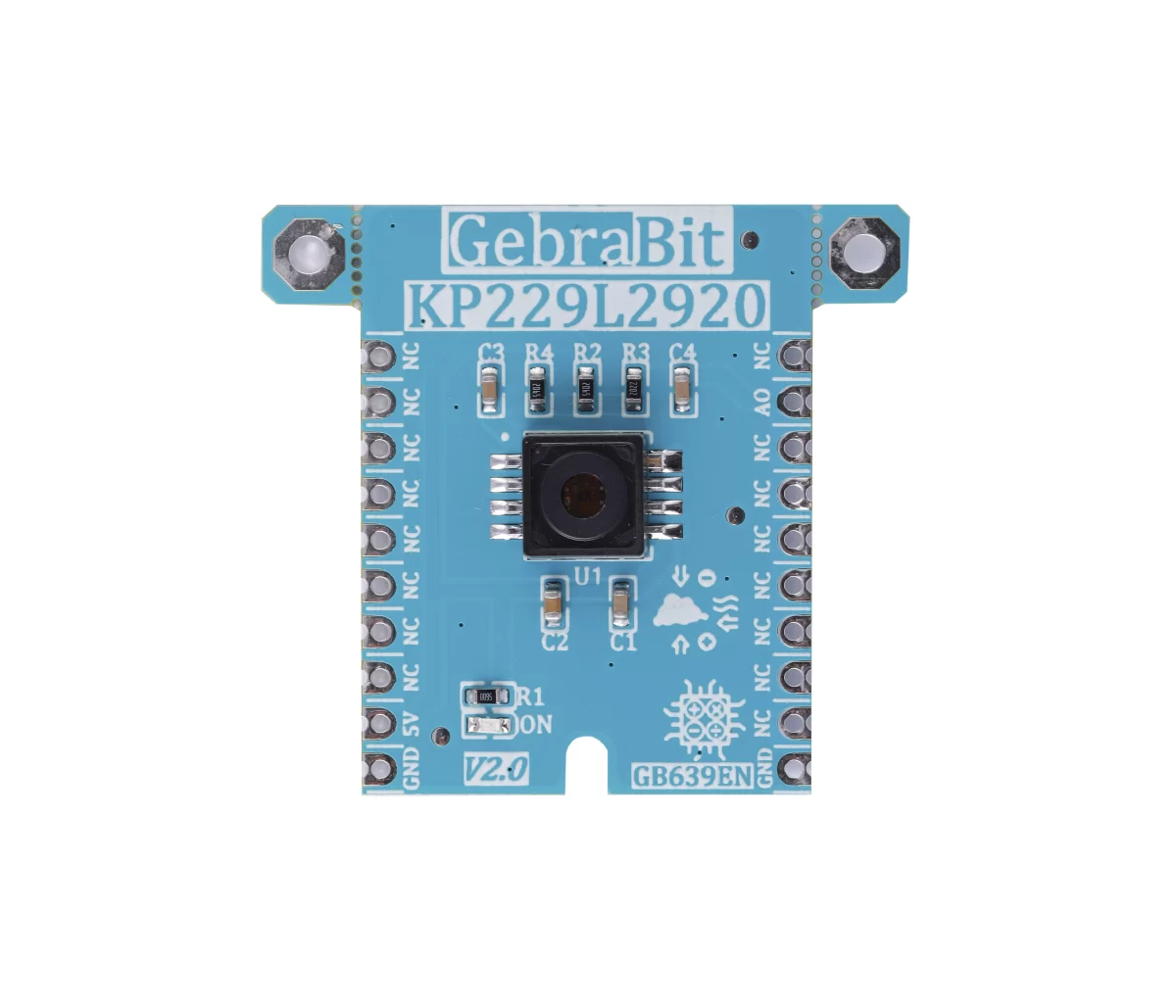

GebraBit KP229L2920 parts

Specifications
Part Number

GebraBit KP229L2920

Short Description

GebraBit KP229L2920 is a Pressure module, with Analog – Voltage output and 10 kpa to 400 kpa measurment range

Board Type

Module

Module Supply Voltage

5.0 V

Module Logic Voltage

5.0 V

Module Current Consumption

10 mA to 30 mA (Typ. 20 mA)

Output Type

Analog – Voltage

Pressure range

10 kpa to 400 kpa

Pressure Accuracy

1.0 kpa

Absolute Pressure Accuracy

–

Relative Pressure Accuracy

–

Pressure Resolution

–

Pressure Sensivity

15.5 mV/kpa to 25 mV/kpa

Temperature Accuracy

–

Humidity range

–

Relative Humidity Accuracy

–

Humidity Resolution

–

Operating temperature range

-40°C to +140°C

Package

GebraBit small (36.29mm x 32.72mm)

Brand

GebraBit

Documents

  • Schematic (.pdf)
  • Module Layout (.pdf)
  • KP229L2920 Datasheet
  • Wiki Link (Source Code and Tutorial)
DISCLAIMER: GEBRABIT PRODUCTS ARE INTENDED SOLELY FOR RESEARCH & DEVELOPMENT PURPOSES. GEBRABIT EXPLICITLY DECLARES IT HAS NO RESPONSIBILITY IF USERS UTILIZE THEM IN ALL OTHER SENSITIVE AND PRECISE APPLICATIONS THAT CAUSE FINANCIAL AND HUMAN LIFE DAMAGE.
