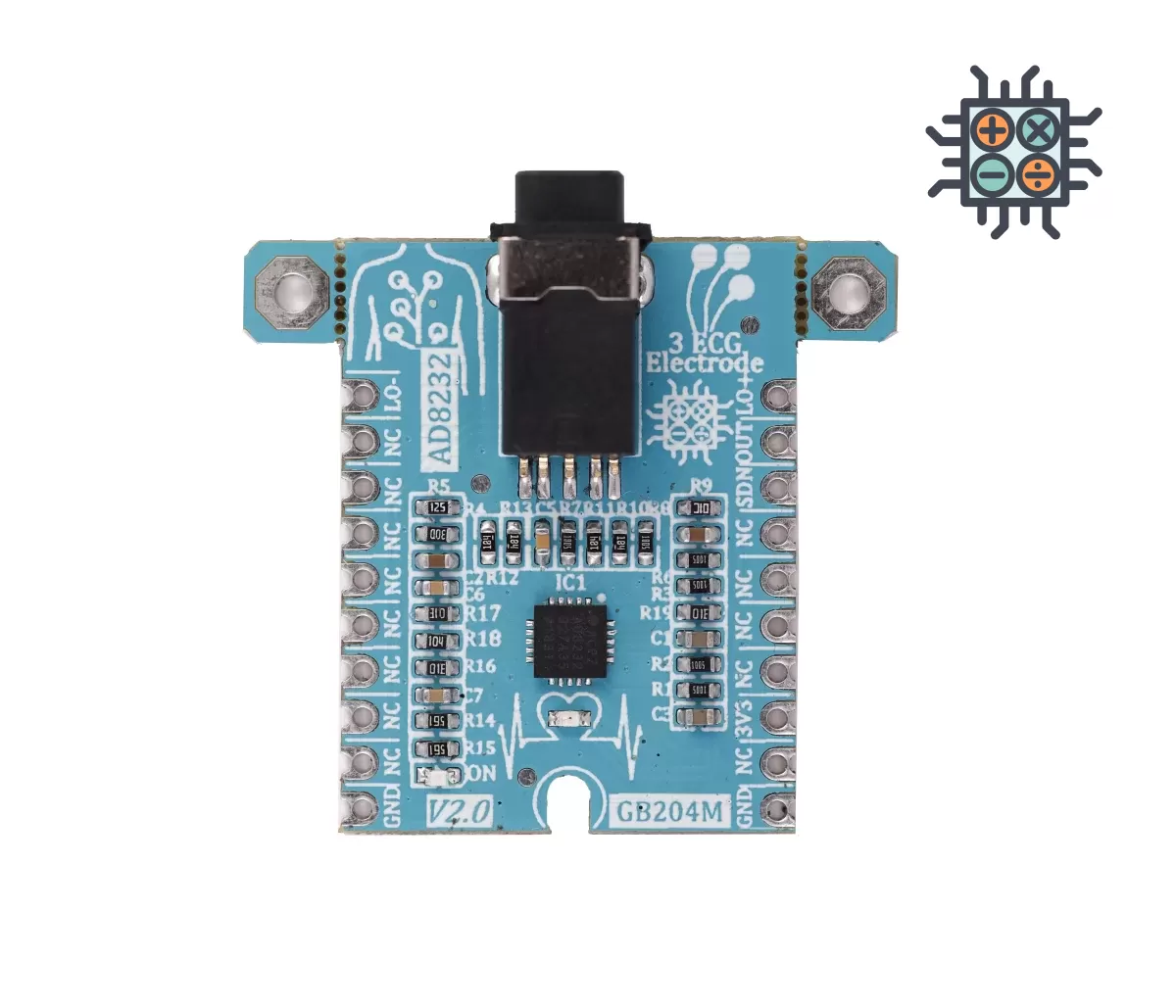

GebraBit AD8232



  • Module type: Single-Lead Heart Rate Monitoring module
  • Module Supply Voltage: 3V3
  • Output type:  Analog – Voltage
  • Data rate: 360SPS to 2KSPS
  • Package: GebraBit small (36.29mm x 32.72mm)



Add to wishlist
Compare
Add to wishlist
SKU: GB204M Categories: ECG, Medical, Products, Sensors
Share
  • Description
  • Specifications
  • Documents
Description

OVERVIEW

GebraBit AD8232 is a 3 lead, integrated signal conditioning block for ECG and other biopotential measurement module.

GebraBit AD8232 operates with just a “3V3” input Supply Voltage and benefits from AD8232  integrated ECG signal conditioning block. For this reason, a 3.5mm headphone jack female socket is considered. This means any 3-lead ECG cable with a 3.5mm male phone jack can meet our requirements.

Besides the ON/OFF LED indicator, there is another LED that blinks when electrical activity is detected. When the reading is reasonably stable, the LED will flash with your heart rate and can be used as a general indicator of whether your device is receiving electrical signals.

Another important issue of  GebraBit AD8232 is that this module is Pin Compatible with GEBRABUS , and users can access to important I/O of AD8232. For reading data and getting ECG waveform, just connect the analog “OUT” pin to MCU ADC and go on!

This module carries AD8232 ,is an integrated signal conditioning block for ECG and other biopotential measurement applications. It is designed to extract, amplify, and filter small biopotential signals in the presence of noisy conditions, such as those created by motion or remote electrode placement. This design allows for an ultralow power analog-to-digital converter (ADC) or an embedded microcontroller to acquire the output signal easily. The AD8232 can implement a two-pole high-pass filter for eliminating motion artifacts and the electrode half-cell potential. This filter is tightly coupled with the instrumentation architecture of the amplifier to allow both large gain and high-pass filtering in a single stage, thereby saving space and cost. An uncommitted operational amplifier enables the AD8232 to create a three-pole low-pass filter to remove additional noise. The user can select the frequency cutoff of all filters to suit different types of applications. To improve common-mode rejection of the line frequencies in the system and other undesired interferences, the AD8232 includes an amplifier for driven lead applications, such as right leg drive (RLD). The AD8232 includes a fast restore function that reduces the duration of otherwise long settling tails of the high-pass filters.

WARNING: FOR ACCURATE INFORMATION ABOUT ICs ABSOLUTE MAXIMUM RATINGS AND ITS PRECIOUS  CHARACTERISTICS RANGES, USERS MUST CERTAINLY REFER TO ICs MANUFACTURE DATASHEET.

Key Features

  • 3V3 input voltage
  • Can use 3-lead ECG cable with 3.5mm phone male jack
  • LED indicator for heart rate
  • ON/OFF LED indicator
  • Access to important I/O of AD8232
  • Pin Compatible with GEBRABUS
  • GebraBit Small package
  • It can be used as a daughter board of GEBRABIT MCU Modules
  • Featuring Castellated pad (Assembled as SMD Part)
  • Separatable screw parts to reduce the size of the board

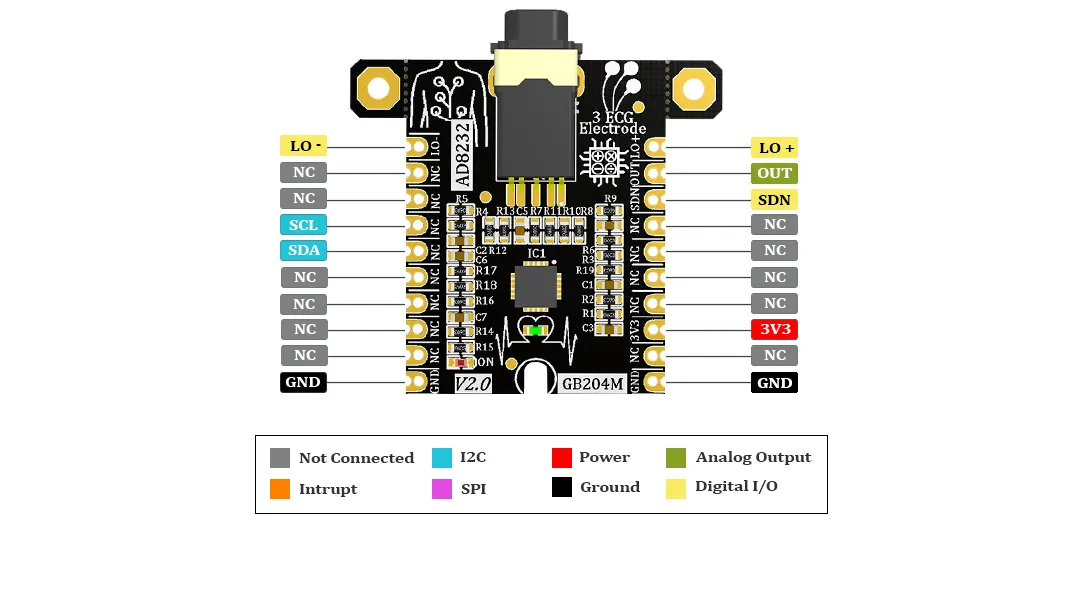

Pinout Diagram





Module Overview



gebrabit AD8232 parts



Specifications
Part Number

GebraBit AD8232

Short Description

GebraBit AD8232 is a Single-Lead, Heart Rate Monitoring module, with Analog – Voltage output

Product Type

Module

Module Supply Voltage

3V3

Module Logic Voltage

–

Module Current Consumption

10 mA to 30 mA (Typ. 20 mA)

Output Type

Analog – Voltage

Number Of Channels

–

ADC Resolution

–

Data Rate

360SPS to 2KSPS

Package

GebraBit small (36.29mm x 32.72mm)

Brand

GebraBit

Documents

  • Schematic (.pdf)
  • Module Layout (.pdf)
  • AD8232 Datasheet
  • Wiki Link (Source Code and Tutorial)
DISCLAIMER: GEBRABIT PRODUCTS ARE INTENDED SOLELY FOR RESEARCH & DEVELOPMENT PURPOSES. GEBRABIT EXPLICITLY DECLARES IT HAS NO RESPONSIBILITY IF USERS UTILIZE THEM IN ALL OTHER SENSITIVE AND PRECISE APPLICATIONS THAT CAUSE FINANCIAL AND HUMAN LIFE DAMAGE.
