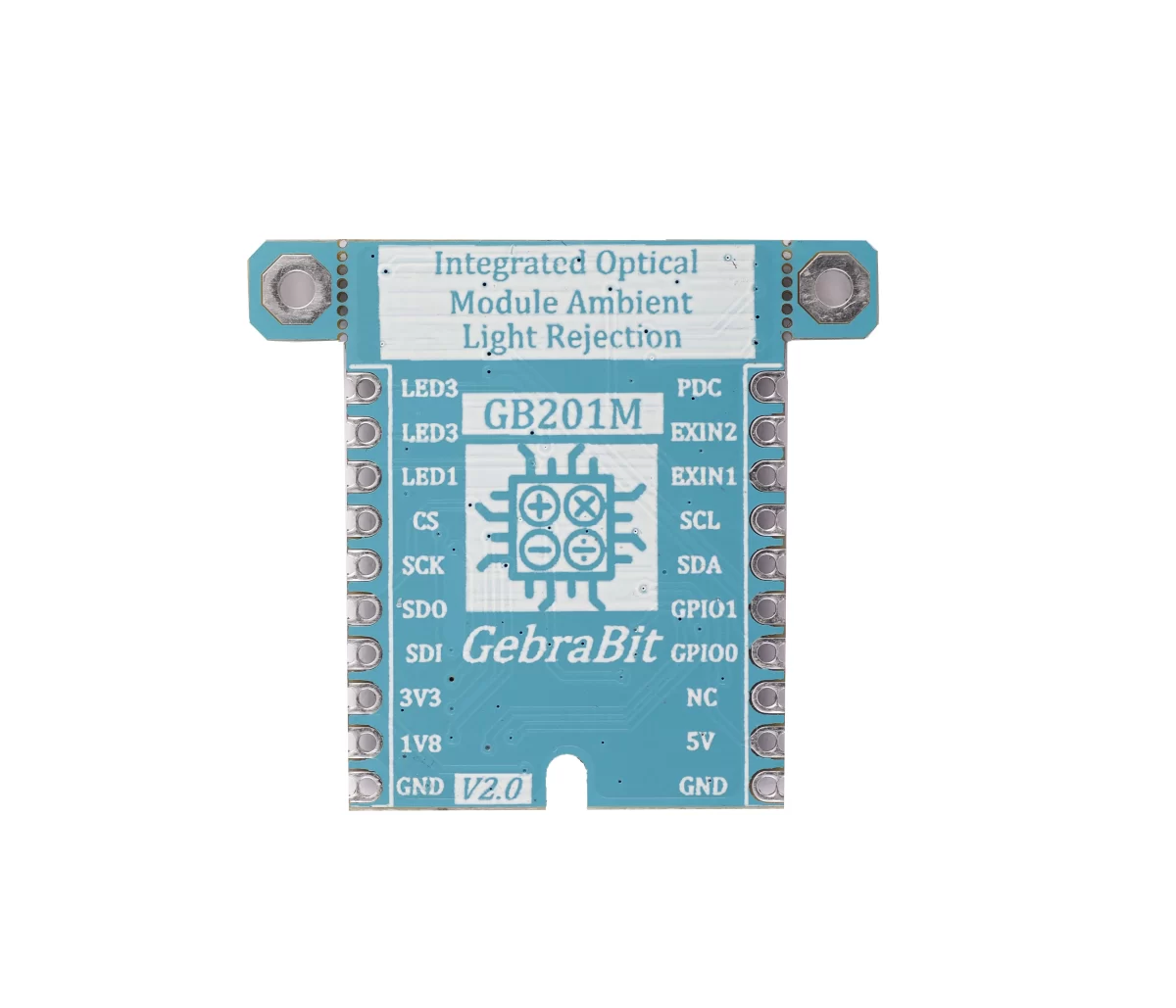

GebraBit ADPD188GG



  • Module type: Heart Rate Monitoring and Reflective SpO2 measurement module
  • Module Supply Voltage: 3V3 or 5V
  • Output type: Digital – SPI and I2C
  • ADC Resolution: 14 Bit
  • Type of filter: IR cut filter
  • Package: GebraBit small (36.29mm x 32.72mm)



Add to wishlist
Compare
Add to wishlist
SKU: GB201M Categories: Medical, Products, Pulse Oximeter and Herat Rate, Sensors
Share
  • Description
  • Specifications
  • Documents
Description

OVERVIEW

GebraBit ADPD188GG is an integrated Optical Module with Ambient Light Rejection with 2 green LEDs, and 2 PDs with IR cut filter.

GebraBit ADPD188GG module, due to an integrated 1V8 regulator, needs a 5V input Supply Voltage to turn the ADPD188GG sensor ON. Regulator output is accessible on the “1V8” pin. Also, there is two jumper selector on the GebraBit ADPD188GG module; One is “VLED SEL” which determines ADPD188GG  Green LED Anode Supply Voltage between “5V” or “3V3”.The other jumper is “VI2C SEL” which is regarded to select logic level voltage of module I2C interface between “1V8” or “3V3”.This feature helps to use a wide range of microcontrollers for interfacing with this module.

An important note about GebraBit ADPD188GG is that this module is Pin Compatible with GEBRABUS , and all important I/O of ADPD188GG is available. Users can interface with GebraBit ADPD188GG by either I2C or SPI protocol. This is achieved by dedicated five jumper selectors on the bottom right of the GebraBit ADPD188GG module.

ADPD188GG is a complete photometric system designed to measure optical signals from ambient light and from synchronous reflected light emitting diode (LED) pulses. Synchronous measurement offers best-in-class rejection of ambient light interference, both dc and ac. The module integrates a highly efficient photometric front end, two LEDs, and two photodiode (PD). All of these items are housed in a custom package that prevents light from going directly from the LED to the photodiode without first entering the subject.The front end of the application specific integrated circuit (ASIC) consists of a control block, a 14-bit analog-to-digital converter (ADC) with a 20-bit burst accumulator, and three flexible, independently configurable LED drivers. The control circuitry includes flexible LED signaling and synchronous detection. The analog front end (AFE) features best-in-class rejection of signal offset and corruption due to modulated interference commonly caused by ambient light.

WARNING: FOR ACCURATE INFORMATION ABOUT ICs ABSOLUTE MAXIMUM RATINGS AND ITS PRECIOUS  CHARACTERISTICS RANGES, USERS MUST CERTAINLY REFER TO ICs MANUFACTURE DATASHEET.

Key Features

  • User-selectable I2C logic level voltage
  • User-selectable ADPD188GG Green LED Anode Supply Voltage
  • User-selectable interface protocol (I2C or SPI)
  • 1V8 Voltage Regulator
  • 1V8 Output Voltage
  • On Board, ON/OFF LED indicator
  • Pin Compatible with GEBRABUS
  • Access to all important I/O of ADPD188GG
  • GebraBit small package
  • It can be used as a daughter board of GEBRABIT MCU Modules
  • Featuring Castellated pad (Assembled as SMD Part)
  • Separatable screw parts to reduce the size of the board

Pinout Diagram

GebraBit ADPD188GG pinout



Module Overview

GEBRABIT ADPD188 PINOUT



Specifications
Part Number

GebraBit ADPD188GG

Short Description

GebraBit ADPD188GG is a 14-Bit Heart Rate Monitoring and Reflective SpO2 measurement module, with Digital – SPI and I2C output

Product Type

Module

Module Supply Voltage

3V3 or 5V

Module Logic Voltage

1V8 or 3V3

Module Current Consumption

refer to Datasheet

Output Type

Digital – SPI and I2C

Number of LEDs

1

Number of PDs

2

Wavelength Range

–

Wavelength Peak

Green: 525nm PD1: 0.4nm PD2: 0.8nm

Type of Filter

IR Cut Filter

ADC Resolution

14-Bit

Package

GebraBit small (36.29mm x 32.72mm)

Brand

GebraBit

Documents

  • Schematic (.pdf)
  • Module Layout (.pdf)
  • ADPD188GG Datasheet
  • Wiki Link (Source Code and Tutorial)
DISCLAIMER: GEBRABIT PRODUCTS ARE INTENDED SOLELY FOR RESEARCH & DEVELOPMENT PURPOSES. GEBRABIT EXPLICITLY DECLARES IT HAS NO RESPONSIBILITY IF USERS UTILIZE THEM IN ALL OTHER SENSITIVE AND PRECISE APPLICATIONS THAT CAUSE FINANCIAL AND HUMAN LIFE DAMAGE.
