GebraBit

GebraBit IIM-42351



  • Module type: Accelerometer module
  • Number of Axis: 3-Axis
  • Output type: Digital – I2C or I3C or SPI
  • FSR: ±2, ±4, ±8, ±16(g)
  • Accelerometer ADC: 16 Bit
  • Package: GebraBit small (36.29mm x 32.72mm)



Add to wishlist
Compare
Add to wishlist
SKU: GB309A Categories: 3- Axis, Accelerometer, Motion, Products, Sensors
Share
  • Description
  • Specifications
  • Documents
Description

OVERVIEW

GebraBit IIM42351 is a High-Performance 3-Axis SmartIndustrial Accelerometer module with 16-bit ADC .

GebraBit IIM42351 module can operate with “1V8” or “3V3” supply Voltages by Considered “VDD SEL” jumper selector. Also, there is another jumper named “VDIO SEL “, which is regarded to select the logic level voltage of module I/O pins between “1V8” or “3V3”. This feature helps to use a wide range of microcontrollers for interfacing with this module.

User can interface with GebraBit IIM42351 by either I2C or SPI protocol. This is achieved by dedicated four jumper selectors on the top right of the GebraBit IIM42351 module. Furthermore, the last jumper selector (Fifth) is considered for setting the I2C address.

Another important issue of GebraBit IIM42351  is accessing the sensor’s FSYNC and INT pins.

The IIM-42351 includes multiple capabilities to enable easy, robust and accurate inertial and inclination measurements in Industrial applications such as Output data rate up to 8 kHz, Highly accurate external clock input to increase ODR accuracy, reduce system level sensitivity error, improve measurement impacts from device to device variation and Wake-on-motion interrupt for low power operation of applications processor.

WARNING: FOR ACCURATE INFORMATION ABOUT ICs ABSOLUTE MAXIMUM RATINGS AND ITS PRECIOUS  CHARACTERISTICS RANGES, USERS MUST CERTAINLY REFER TO ICs MANUFACTURE DATASHEET.



Key Features

  • User-selectable module power supply voltage between 1V8 and 3V3
  • User-selectable module I/O logic voltage between 1V8 and 3V3
  • User-selectable interface protocol (I2C or SPI)
  • User-selectable I2C address (AD0)
  • Access to all data pins of the sensor
  • On Board, ON/OFF LED indicator
  • Pin Compatible with GEBRABUS
  • GebraBit small package
  • It can be used as a daughter board of GebraBit MCU Modules
  • Featuring Castellated pad (Assembled as SMD Part)
  • Separatable screw parts to reduce the size of the board

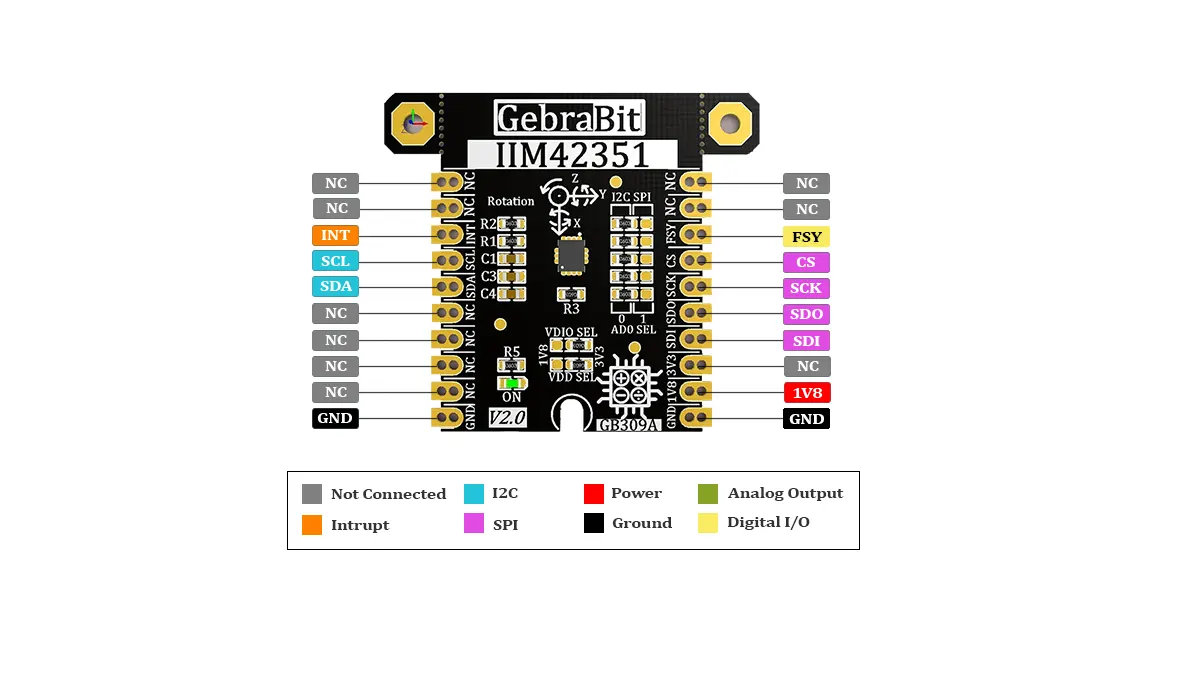

Pinout Diagram





Module Overview

gebrabit IIM42351 parts

Specifications
Part Number

GebraBit IIM-42351

Short Description

16-Bit Accelerometer module, GebraBit IIM-42351 is a 3-Axis, with Digital-I2C or I3C or SPI output

Product Type

Module

Number of Axis

3-Axis

Module Logic Voltage

1.8 V or 3.3 V

Module Current Consumption

10 mA to 30 mA (Typ. 20 mA)

Output Type

Digital-I2C or I3C or SPI

Accelerometer FSR

±16 (g), ±2, ±4, ±8

Accelerometer Sensitivity SF

16384, 2048 (LSB/g), 4096, 8192

Accelerometer ADC

16-Bit

Gyroscope FSR

–

Gyroscope Sensitivity SF

–

Gyroscope ADC

–

Magnetometer FSR

–

Magnetometer SF

–

Magnetometer Resolution

–

Pressure range

–

Pressure Accuracy

–

Pressure Resolution

–

Brand

GebraBit

Documents

Documents Link

  • Schematic (.pdf)
  • Module Layout (.pdf)
  • IIM42351 Datasheet
  • Wiki Link (Source Code and Tutorial)
DISCLAIMER: GEBRABIT PRODUCTS ARE INTENDED SOLELY FOR RESEARCH & DEVELOPMENT PURPOSES. GEBRABIT EXPLICITLY DECLARES IT HAS NO RESPONSIBILITY IF USERS UTILIZE THEM IN ALL OTHER SENSITIVE AND PRECISE APPLICATIONS THAT CAUSE FINANCIAL AND HUMAN LIFE DAMAGE.

Related products

Compare
Close

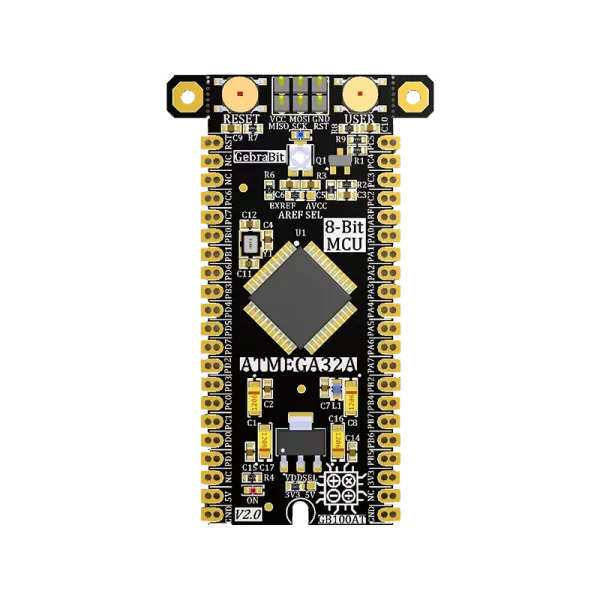

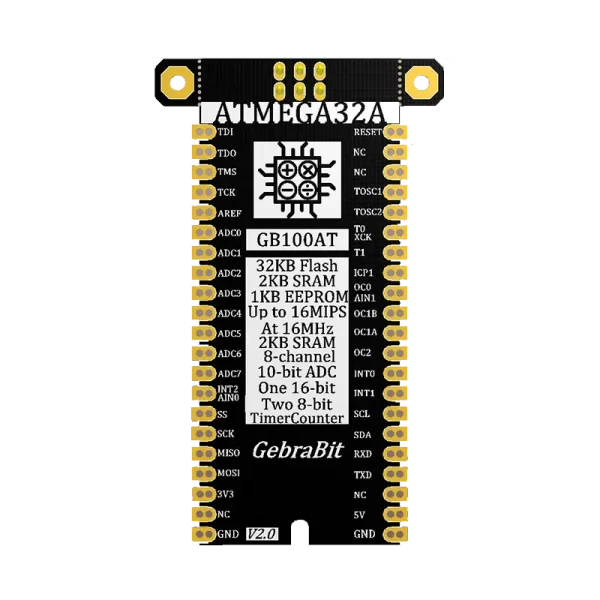

GebraBit ATMEGA32A


  • Module type: AVR microcontroller module
  • Core Processor: AVR
  • Core Size: 8 Bit
  • Connectivity: I2C, SPI, UART/USART
  • Program Memory Type: Flash
  • Program Memory Size: 32KB
  • RAM Size: 2kB
  • ADC Resolution: 10 Bit
  • Package: GebraBit large (36.29mm x 61.23mm)

Add to wishlist
Read more
Quick view
Compare
Close

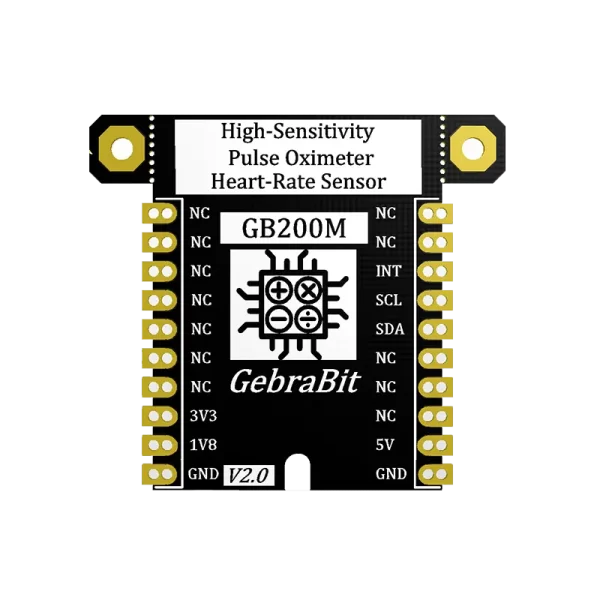

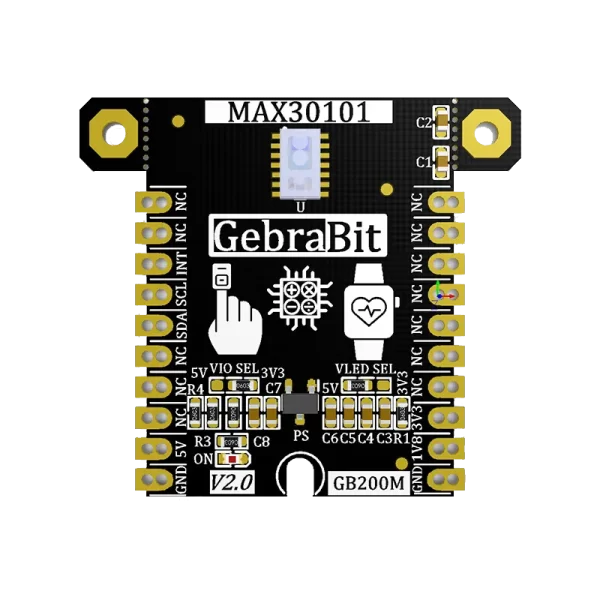

GebraBit MAX30101


  • Module type: Heart Rate Monitoring and Pulse Oximeter module
  • Module Supply Voltage: 3V3 or 5V
  • Output Type: Digital – I2C
  • Wavelength Range: IR: 870nm to 900nm RED: 650nm to 670 Green: 530nm to 545nm
  • ADC Resolution: 18 Bit
  • Number of LEDs: 3
  • Package: GebraBit small (36.29mm x 32.72mm)

Add to wishlist
Read more
Quick view
Compare
Close

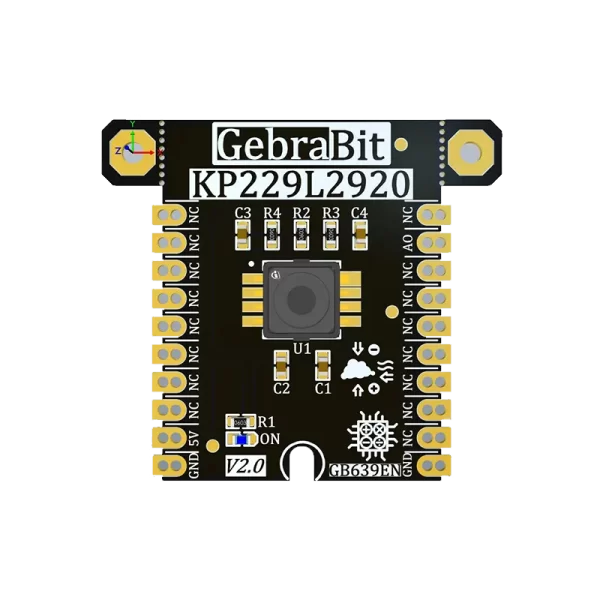

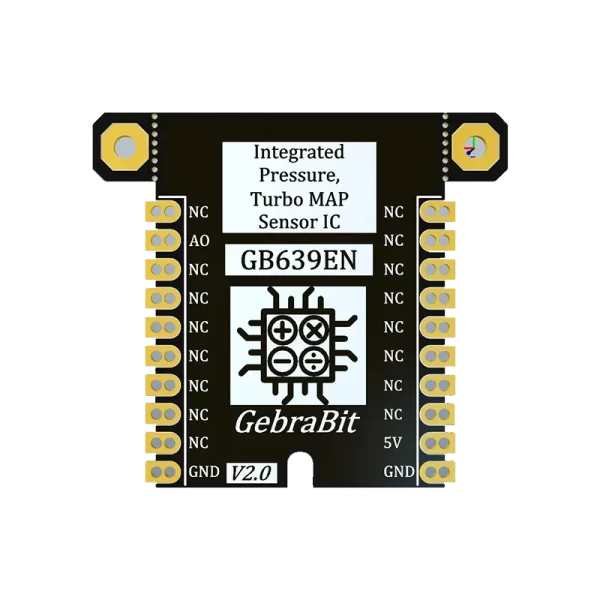

GebraBit KP229L2920


  • Module type: Pressure module
  • Module Supply Voltage: 5.0 V
  • Output type: Analog-Voltage
  • Pressure range: 10 to 400 kpa
  • Pressure Accuracy: 1.0 kpa
  • Operating temperature range: -40°C to +140°C
  • Package: GebraBit small (36.29mm x 32.72mm)

Add to wishlist
Read more
Quick view
Compare
Close

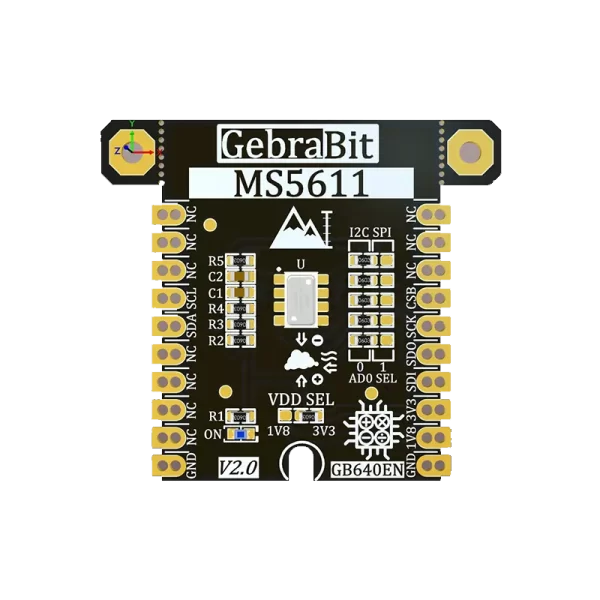

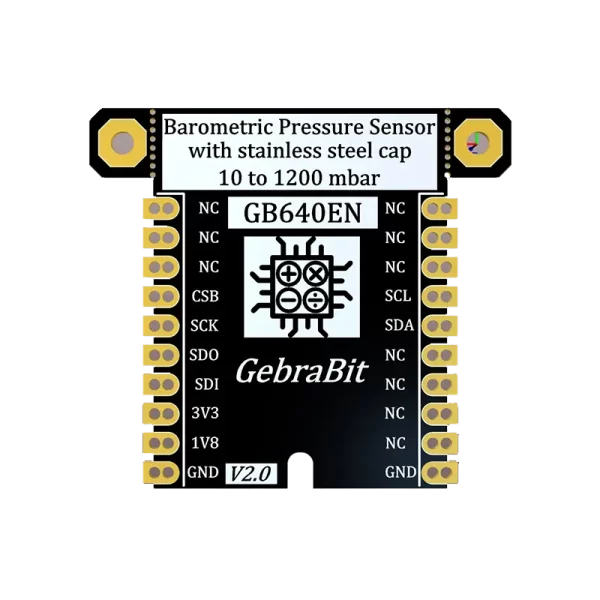

GebraBit MS5611-01BA03-50


  • Module type: Barometric Pressure module
  • Module Supply Voltage: 1.8 V or 3.3 V
  • Output Type: Digital – I2C or SPI
  • Pressure range: 10 mbar to 1200 mbar
  • Pressure Accuracy: ±1.5 mbar
  • Operating temperature range: -40°C to +125°C
  • Package: GebraBit medium (36.29mm x 46.18mm)

Add to wishlist
Read more
Quick view
Compare
Close

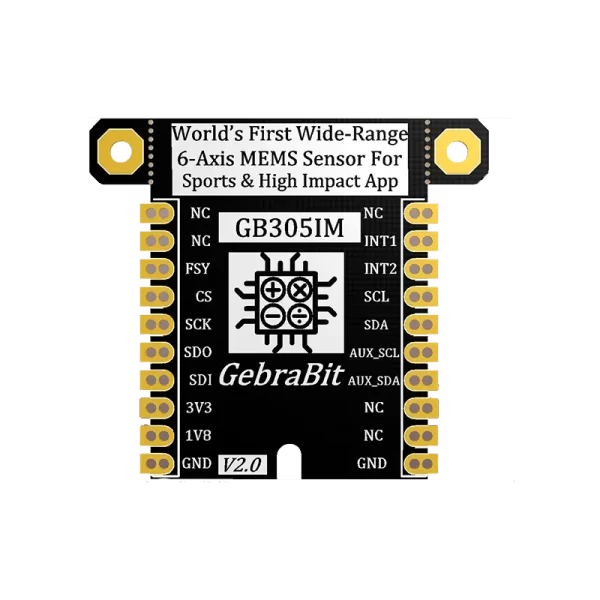

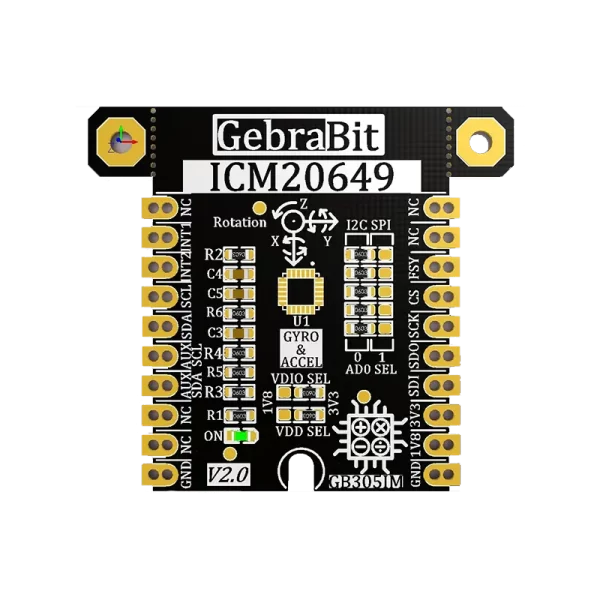

GebraBit ICM20649


  • Module type: Gyroscope and Accelerometer module
  • Number of Axis: 6-Axis
  • Module Supply voltage: 1.8 V or 3.3 V
  • Output type: Digital-I2C or SPI
  • Accelerometer FSR: ±4, ±8, ±16, ±30(g)
  • Gyroscope FSR: ±500, ±1000, ±2000, ±4000(dps)
  • Acc. & Gyro ADC: 16 Bit
  • Package: GebraBit small (36.29mm x 32.72mm)

Add to wishlist
Read more
Quick view
Compare
Close

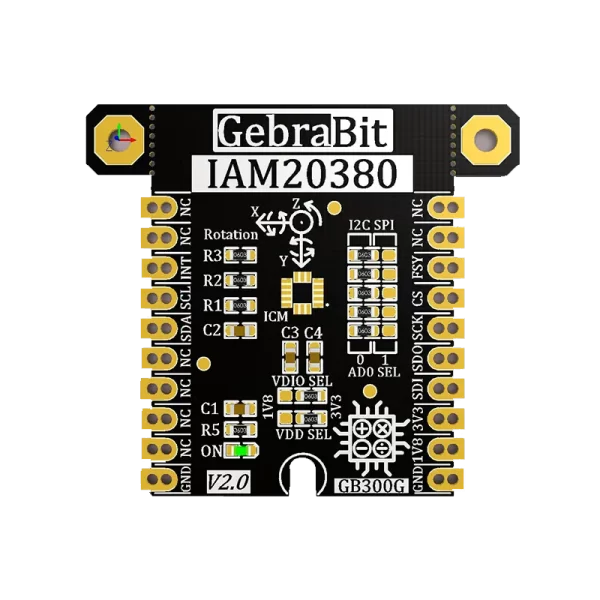

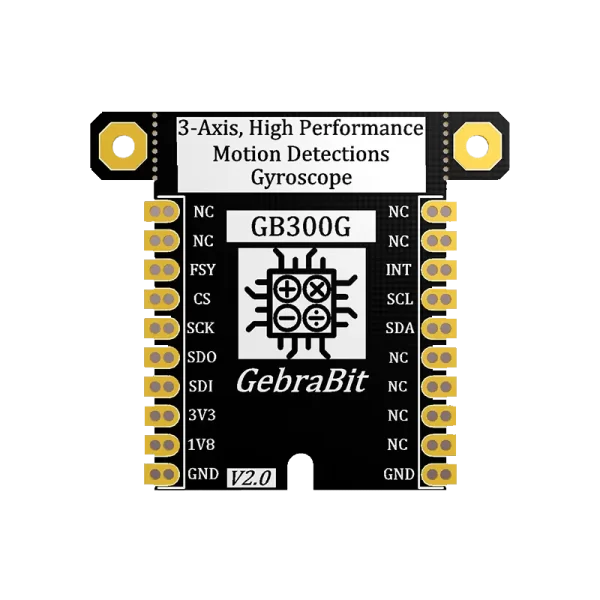

GebraBit IAM-20380


  • Module type: Gyroscope module
  • Number of Axis: 3-Axis
  • Module Supply voltage: 1.8 V or 3.3 V
  • Output type: Digital-I2C or SPI
  • FSR: ±250, ±500, ±1000, ±2000(dps)
  • Gyroscope ADC: 16 Bit
  • Package: GebraBit small (36.29mm x 32.72mm)

Add to wishlist
Read more
Quick view
Compare
Close

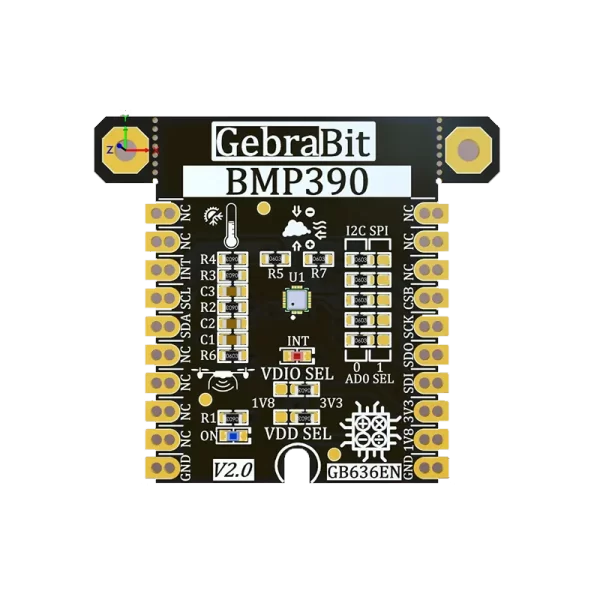

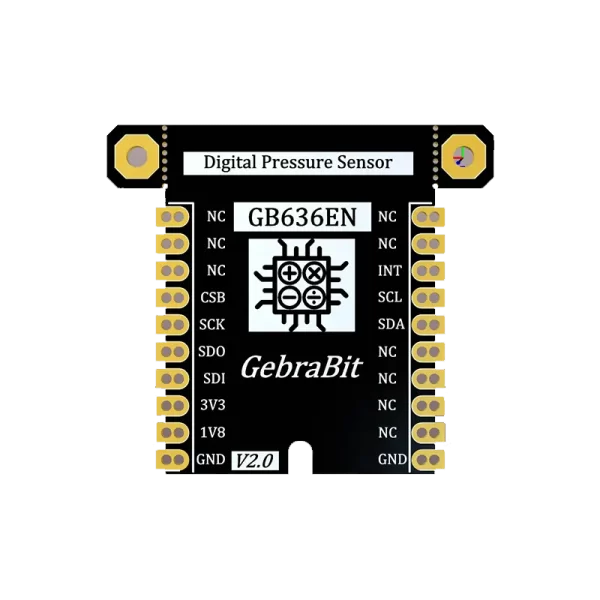

GebraBit BMP390


  • Module type: Pressure and Temperature module
  • Module Supply voltage: 1.8 V or 3.3 V
  • Output type: Digital - I2C or SPI
  • Pressure range: 300 hpa to 1250 hpa
  • Absolute Pressure Accuracy: ±0.33 hpa to ±0.50 hpa
  • Temperature Accuracy: ±0.5°C to ±1.50°C
  • Operating temperature range: -40°C to +85°C
  • Package: GebraBit small (36.29mm x 32.72mm)

Add to wishlist
Read more
Quick view
Compare
Close

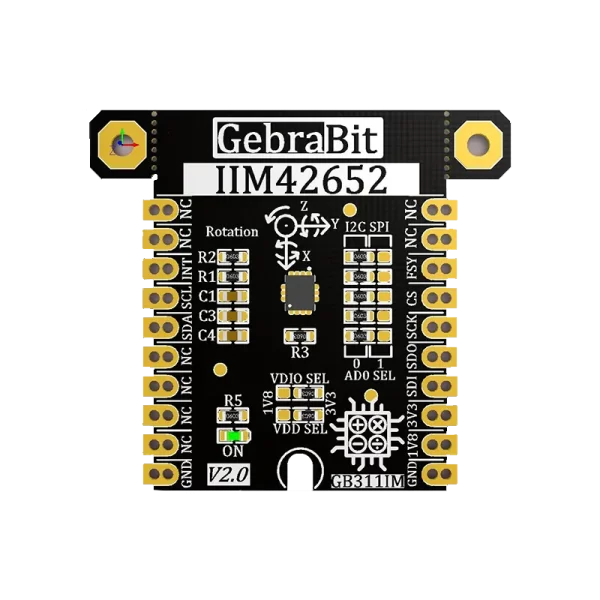

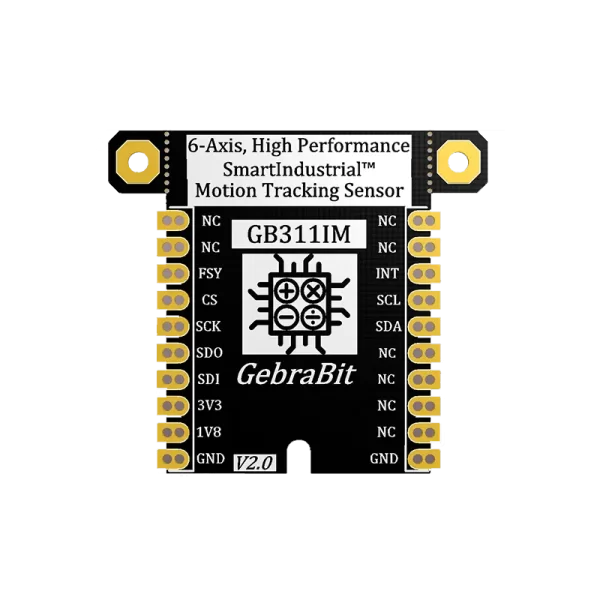

GebraBit IIM-42652
