GebraBit

GebraBit LED MODULE



  • Module type: LED MODULE
  • LEDs: 3 Different DIP/SMD
  • Module Supply Voltage: 3.3 V or 5.0 V
  • Package: GebraBit small (36.29mm x 32.72mm)



Add to wishlist
Compare
Add to wishlist
SKU: GB502R Categories: Enviromental, Light, Products, Sensors
Share
  • Description
  • Specifications
  • Documents
Description

OVERVIEW

GebraBit LED module features either SMD or DIP triple LEDs.Note that avoid using DIP and SMD simultaneously. For proper operation, either DIP or  SMD LEDs must be assembled.

GebraBit LED module can operate with “3V3” or “5V” supply Voltages by considered “VCC SEL” jumper selector.

User can set(ACTIVE HIGH) the LEDs status by “LD1“, “LD2” and “LD3” pins. For easy accessibility, GebraBit LED  gives access to the “LD1“, “LD2“, “LD3“, “VCC“, and “GND” pins by a 5-pin PH connector to extend them on other boards.

WARNING: FOR ACCURATE INFORMATION ABOUT ICs ABSOLUTE MAXIMUM RATINGS AND ITS PRECIOUS  CHARACTERISTICS RANGES, USERS MUST CERTAINLY REFER TO ICs MANUFACTURE DATASHEET.



Key Features

  • Features either SMD or DIP triple LEDs
  • User-selectable module power supply voltage between 3V3 and 5V
  • Control Pin access with PH connector
  • On Board, ON/OFF LED indicator
  • Pin Compatible with GEBRABUS
  • GebraBit small package
  • It can be used as a daughter board of GebraBit MCU Modules
  • Featuring Castellated pad (Assembled as SMD Part)
  • Separatable screw parts to reduce the size of the board

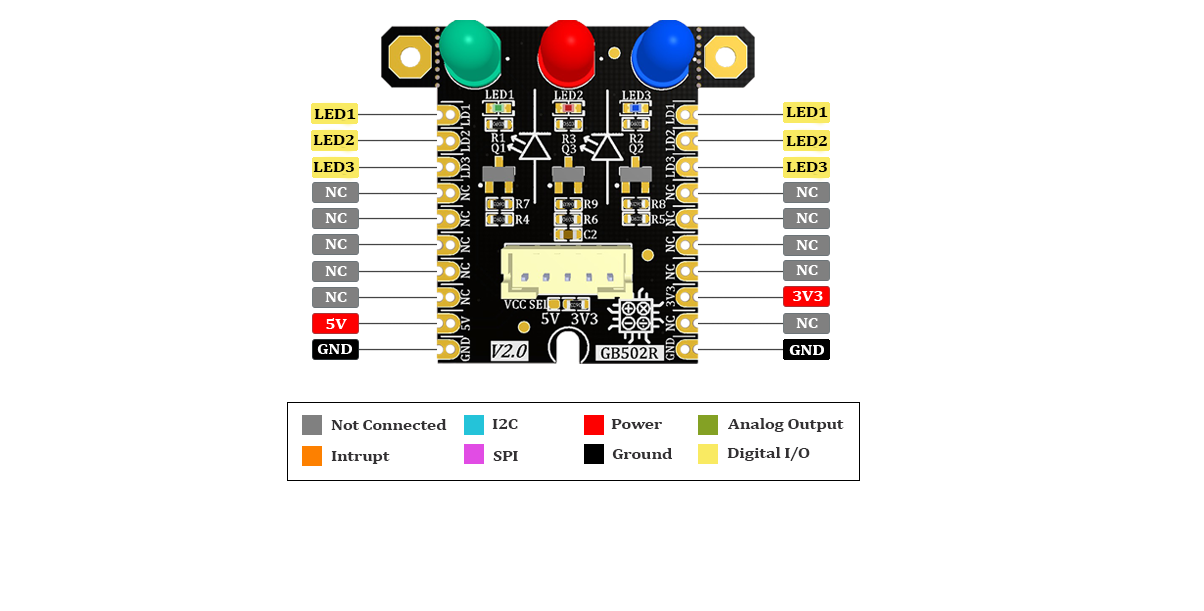

Pinout Diagram



Module Overview

gebrabit LED module parts

Specifications
Part Number

GebraBit LED MODULE

Short Description

GebraBit LED MODULE features 3 Different DIP/SMD LEDs

Product Type

Module

Module Supply Voltage

3.3 V or 5.0 V

Module Logic Voltage

3.3 V or 5.0 V

Module Current Consumption

10 mA to 50 mA (Typ. 30 mA)

Output Type

–

Package

GebraBit small (36.29mm x 32.72mm)

Brand

GebraBit

Documents

Documents Link

  • Schematic (.pdf)
  • Module Layout (.pdf)
  • GebraBit LED Datasheet
  • Wiki Link (Source Code and Tutorial)
DISCLAIMER: GEBRABIT PRODUCTS ARE INTENDED SOLELY FOR RESEARCH & DEVELOPMENT PURPOSES. GEBRABIT EXPLICITLY DECLARES IT HAS NO RESPONSIBILITY IF USERS UTILIZE THEM IN ALL OTHER SENSITIVE AND PRECISE APPLICATIONS THAT CAUSE FINANCIAL AND HUMAN LIFE DAMAGE.
