GebraBit IAM-20381



  • Module type: Accelerometer module
  • Number of Axis: 3-Axis
  • Module Supply voltage: 1.8 V or 3.3 V
  • Output type: Digital-I2C or SPI
  • FSR: ±2, ±4, ±8, ±16(g)
  • Accelerometer ADC: 16 Bit
  • Package: GebraBit small (36.29mm x 32.72mm)



Add to wishlist
Compare
Add to wishlist
SKU: GB301A Categories: 3- Axis, Accelerometer, Motion, Products, Sensors
Share
  • Description
  • Specifications
  • Documents
Description

OVERVIEW



GebraBit IAM20381 is a High-Performance 3-axis MotionTracking accelerometer module for Automotive applications with an integrated 16-bit ADC.

GebraBit IAM20381 module can operate with “1V8” or “3V3” supply Voltages by Considered “VDD SEL” jumper selector. Also, there is another jumper named “VDIO SEL “, which is regarded to select the logic level voltage of module I/O pins between “1V8” or “3V3”. This feature helps to use a wide range of microcontrollers for interfacing with this module.

User can interface with GebraBit IAM20381 by either I2C or SPI protocol. This is achieved by dedicated four jumper selectors on the top right of the GebraBit IAM20381 module. Furthermore, the last jumper selector (Fifth) is considered for setting the I2C address.

Another important issue of GebraBit IAM20381  is accessing the sensor’s FSYNC and INT pins.

The IAM-20381 is a MotionTracker that features User-programmable digital filters for the gyroscope and temperature sensor, with a 512-byte FIFO that can lower the traffic on the serial bus interface and reduce power consumption by allowing the system processor to burst read sensor data and then go into a low-power mode. IAM-20381, with its 3-axis integration, enables manufacturers to eliminate the costly and complex selection, qualification, and system-level integration of discrete devices, guaranteeing optimal motion performance.

WARNING: FOR ACCURATE INFORMATION ABOUT ICs ABSOLUTE MAXIMUM RATINGS AND ITS PRECIOUS  CHARACTERISTICS RANGES, USERS MUST CERTAINLY REFER TO ICs MANUFACTURE DATASHEET.



Key Features

  • User-selectable module power supply voltage between 1V8 and 3V3
  • User-selectable module I/O logic voltage between 1V8 and 3V3
  • User-selectable interface protocol (I2C or SPI)
  • User-selectable I2C address (AD0)
  • Access to all data pins of the sensor
  • On Board, ON/OFF LED indicator
  • Pin Compatible with GEBRABUS
  • GebraBit small package
  • It can be used as a daughter board of GebraBit MCU Modules
  • Featuring Castellated pad (Assembled as SMD Part)
  • Separatable screw parts to reduce the size of the board



Pinout Diagram

gebrabit IAM20381 pinout

Specifications
Part Number

GebraBit IAM-20381

Short Description

16-Bit Accelerometer module, GebraBit IAM-20381 is a 3-Axis, with Digital-I2C or SPI output

Product Type

Module

Number of Axis

3-Axis

Module Logic Voltage

1.8 V or 3.3 V

Module Current Consumption

10 mA to 30 mA (Typ. 20 mA)

Output Type

Digital-I2C or SPI

Accelerometer FSR

±16 (g), ±2, ±4, ±8

Accelerometer Sensitivity SF

16384, 2048 (LSB/g), 4096, 8192

Accelerometer ADC

16-Bit

Gyroscope FSR

–

Gyroscope Sensitivity SF

–

Gyroscope ADC

–

Magnetometer FSR

–

Magnetometer SF

–

Magnetometer Resolution

–

Pressure range

–

Pressure Accuracy

–

Pressure Resolution

–

Package

GebraBit small (36.29mm x 32.72mm)

Brand

GebraBit

Documents

Documents Link

  • Schematic (.pdf)
  • Module Layout (.pdf)
  • IAM20381  Datasheet
  • Wiki Link (Source Code and Tutorial)
DISCLAIMER: GEBRABIT PRODUCTS ARE INTENDED SOLELY FOR RESEARCH & DEVELOPMENT PURPOSES. GEBRABIT EXPLICITLY DECLARES IT HAS NO RESPONSIBILITY IF USERS UTILIZE THEM IN ALL OTHER SENSITIVE AND PRECISE APPLICATIONS THAT CAUSE FINANCIAL AND HUMAN LIFE DAMAGE.

Related products

Compare
Close

GebraBit MAX30003


  • Module type: Biopotential Measurement and Heart Rate Monitoring module
  • Module Supply Voltage: 3V3
  • Output Type: Digital - SPI
  • Number Of Channels: 1
  • Operating Range: 0.01 to 64k lux
  • ADC Resolution: 18 Bit
  • Data Rate: 125SPS to 512SPS
  • Package: GebraBit small (36.29mm x 32.72mm)

Add to wishlist
Read more
Quick view
Compare
Close

GebraBit ADPD188GG


  • Module type: Heart Rate Monitoring and Reflective SpO2 measurement module
  • Module Supply Voltage: 3V3 or 5V
  • Output type: Digital - SPI and I2C
  • ADC Resolution: 14 Bit
  • Type of filter: IR cut filter
  • Package: GebraBit small (36.29mm x 32.72mm)

Add to wishlist
Read more
Quick view
Compare
Close

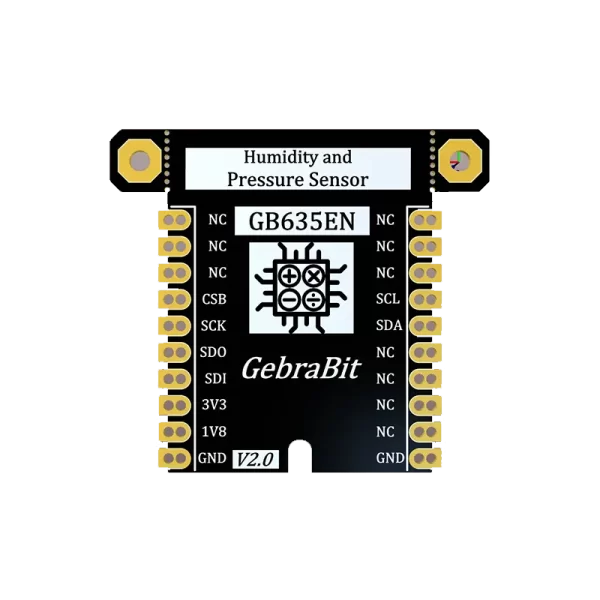

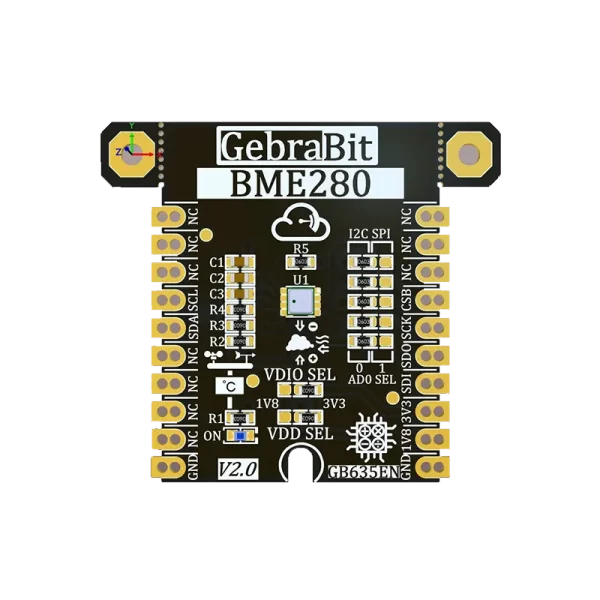

GebraBit BME280
