GebraBit L9110S



  • Module type: H-Bridge Motor Driver module
  • DC Output Current: 800mA
  • Output Channels: 2
  • Module Supply Voltage: 2.5V to 12V
  • VM: 2.5V to 12V
  • Output type: Analog-Voltage
  • Interface: Digital – Logic, PWM
  • Package: GebraBit medium (36.29mm x 46.18mm)



Add to wishlist
Compare
Add to wishlist
SKU: GB803DM Categories: Brushed DC, Motor Driver, Products
Share
  • Description
  • Specifications
  • Documents
Description

OVERVIEW

GebraBit L9110S is a 2.5 to 12V 800mA dual channel motor driver module.

GebraBit L9110S module can operate up to 12V through “VCC” pin

Users can access the most important pins of the L9110s through the GebraBit L9110S module. Pins like “IA1”, “IB1”, “IA2″, “IB2” as direction control pins

For easy accessibility, GebraBit L9110S gives access to the “VCC”, “GND”, and “IA1”, “IB1”, “IA2″, “IB2” pins by a 2×4 pin IDC connector to extend them on other boards.

GebraBit L298N has two screw terminal blocks for “OA1”, “OB1″,”OA2”, “OB2” to connecting motors and one terminal block for connecting “VCC” and “GND” to the module.

L9110 The ASIC device control and drive motor design two-channel push-pull power amplifier discrete circuits integrated into a monolithic IC, peripheral devices and reduce the cost, improve the reliability of the whole. This chip has two TTL / CMOS compatible with the level of the input, with good resistance; two output terminals can directly forward and reverse movement of the drive motor, it has a large current driving capability, each channel through 750 ~800mA of continuous current, peak current capability up to 1.5 ~ 2.0A; while it has a low output saturation voltage; built-in clamp diode reverse the impact of the current release inductive load it in the drive relays, DC motors, stepper motor or switch power tube use on safe and reliable. L9110 is widely used in toy car motor drives, stepper motor drive and switching power tube circuit.



WARNING: FOR ACCURATE INFORMATION ABOUT ICs ABSOLUTE MAXIMUM RATINGS AND ITS PRECIOUS CHARACTERISTICS RANGES, USERS MUST CERTAINLY REFER TO ICs MANUFACTURE DATASHEET.



Key Features

  • On Board, ON/OFF LED indicator
  • On Board LED indicator for direction pins
  • Control Pin access with IDC connector
  • Screw terminal blocks for power and motor connections
  • GebraBit Pin Compatible with GEBRABUS
  • GebraBit small package
  • It can be used as a daughter board of GebraBit MCU Modules
  • Featuring Castellated pad (Assembled as SMD Part)
  • Separatable screw parts to reduce the size of the board

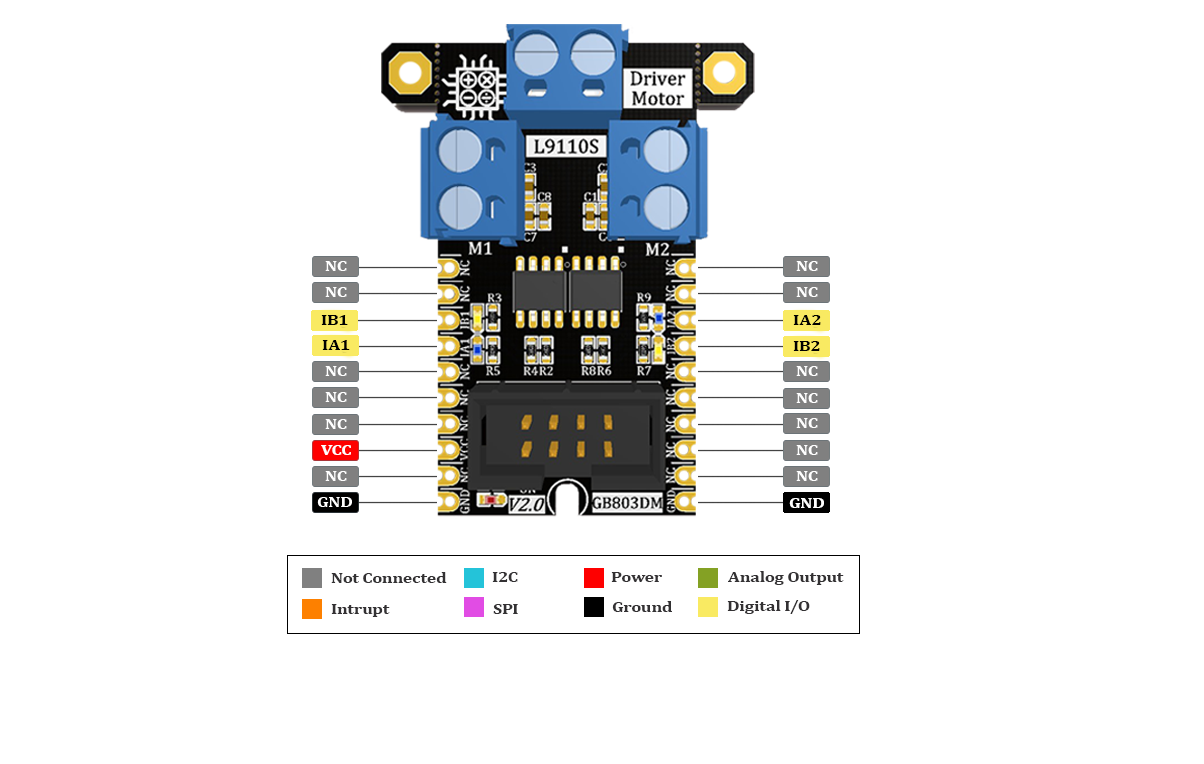

Pinout Diagram

Module Overview

gebrabit L9110S parts

Specifications
Part Number

GebraBit L9110S

Short Description

GebraBit L9110S is a 2-channel H-Bridge 800mA Motor Driver module, with 2.5V to 12V input motor voltage

Product Type

Module

Module Supply Voltage

2.5V to 12V

Module Logic Voltage

Refer to Datasheet

VM

2.5V to 12V

Module Current Consumption

20 mA to 60 mA (Typ. 40 mA)

Output Type

Analog-Voltage

DC Output Current

800mA

Output Channels

2

Interface

Digital – Logic, PWM

Package

GebraBit medium (36.29mm x 46.18mm)

Brand

GebraBit

Documents

Documents Link

  • Schematic (.pdf)
  • Module Layout (.pdf)
  • L9110s Datasheet
  • Wiki Link (Source Code and Tutorial)
DISCLAIMER: GEBRABIT PRODUCTS ARE INTENDED SOLELY FOR RESEARCH & DEVELOPMENT PURPOSES. GEBRABIT EXPLICITLY DECLARES IT HAS NO RESPONSIBILITY IF USERS UTILIZE THEM IN ALL OTHER SENSITIVE AND PRECISE APPLICATIONS THAT CAUSE FINANCIAL AND HUMAN LIFE DAMAGE.
