1. /* USER CODE BEGIN Header */
  2. /*
  3.  * ________________________________________________________________________________________________________
  4.  * Copyright (c) 2020 GebraBit Inc. All rights reserved.
  5.  *
  6.  * This software, related documentation and any modifications thereto (collectively “Software”) is subject
  7.  * to GebraBit and its licensors' intellectual property rights under U.S. and international copyright
  8.  * and other intellectual property rights laws.
  9.  *
 10.  * GebraBit and its licensors retain all intellectual property and proprietary rights in and to the Software
 11.  * and any use, reproduction, disclosure or distribution of the Software without an express license agreement
 12.  * from GebraBit is strictly prohibited.
 13.
 14.  * THE SOFTWARE IS PROVIDED "AS IS", WITHOUT WARRANTY OF ANY KIND, EXPRESS OR IMPLIED, INCLUDING BUT
 15.  * NOT LIMITED TO THE WARRANTIES OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE AND NON-INFRINGEMENT IN
 16.  * NO EVENT SHALL GebraBit BE LIABLE FOR ANY DIRECT, SPECIAL, INDIRECT, INCIDENTAL, OR CONSEQUENTIAL DAMAGES,
 17.  * OR ANY DAMAGES WHATSOEVER RESULTING FROM LOSS OF USE, DATA OR PROFITS, WHETHER IN AN ACTION OF CONTRACT,
 18.  * NEGLIGENCE OR OTHER TORTIOUS ACTION, ARISING OUT OF OR IN CONNECTION WITH THE USE OR PERFORMANCE
 19.  * OF THE SOFTWARE.
 20.  * ________________________________________________________________________________________________________
 21.  */
 22. /**
 23.   ******************************************************************************
 24.   * @file           : main.c
 25.   * @brief          : Main program body
 26. 	* @Author       	: Mehrdad Zeinali
 27.   ******************************************************************************
 28.   * @attention
 29.   *
 30.   * Copyright (c) 2022 STMicroelectronics.
 31.   * All rights reserved.
 32.   *
 33.   * This software is licensed under terms that can be found in the LICENSE file
 34.   * in the root directory of this software component.
 35.   * If no LICENSE file comes with this software, it is provided AS-IS.
 36.   *
 37.   ******************************************************************************
 38.   */
 39. /* USER CODE END Header */
 40. /* Includes ------------------------------------------------------------------*/
 41. #include "main.h"
 42. #include "i2c.h"
 43. #include "gpio.h"
 44.
 45. /* Private includes ----------------------------------------------------------*/
 46. /* USER CODE BEGIN Includes */
 47. #include "GebraBit_APDS9306.h"
 48. /* USER CODE END Includes */
 49.
 50. /* Private typedef -----------------------------------------------------------*/
 51. /* USER CODE BEGIN PTD */
 52. GebraBit_APDS9306 APDS9306_Module;
 53. /* USER CODE END PTD */
 54.
 55. /* Private define ------------------------------------------------------------*/
 56. /* USER CODE BEGIN PD */
 57. /* USER CODE END PD */
 58.
 59. /* Private macro -------------------------------------------------------------*/
 60. /* USER CODE BEGIN PM */
 61.
 62. /* USER CODE END PM */
 63.
 64. /* Private variables ---------------------------------------------------------*/
 65.
 66. /* USER CODE BEGIN PV */
 67.
 68. /* USER CODE END PV */
 69.
 70. /* Private function prototypes -----------------------------------------------*/
 71. void SystemClock_Config(void);
 72. /* USER CODE BEGIN PFP */
 73.
 74. /* USER CODE END PFP */
 75.
 76. /* Private user code ---------------------------------------------------------*/
 77. /* USER CODE BEGIN 0 */
 78.
 79. /* USER CODE END 0 */
 80.
 81. /**
 82.   * @brief  The application entry point.
 83.   * @retval int
 84.   */
 85. int main(void)
 86. {
 87.   /* USER CODE BEGIN 1 */
 88.
 89.   /* USER CODE END 1 */
 90.
 91.   /* MCU Configuration--------------------------------------------------------*/
 92.
 93.   /* Reset of all peripherals, Initializes the Flash interface and the Systick. */
 94.   HAL_Init();
 95.
 96.   /* USER CODE BEGIN Init */
 97.
 98.   /* USER CODE END Init */
 99.
100.   /* Configure the system clock */
101.   SystemClock_Config();
102.
103.   /* USER CODE BEGIN SysInit */
104.
105.   /* USER CODE END SysInit */
106.
107.   /* Initialize all configured peripherals */
108.   MX_GPIO_Init();

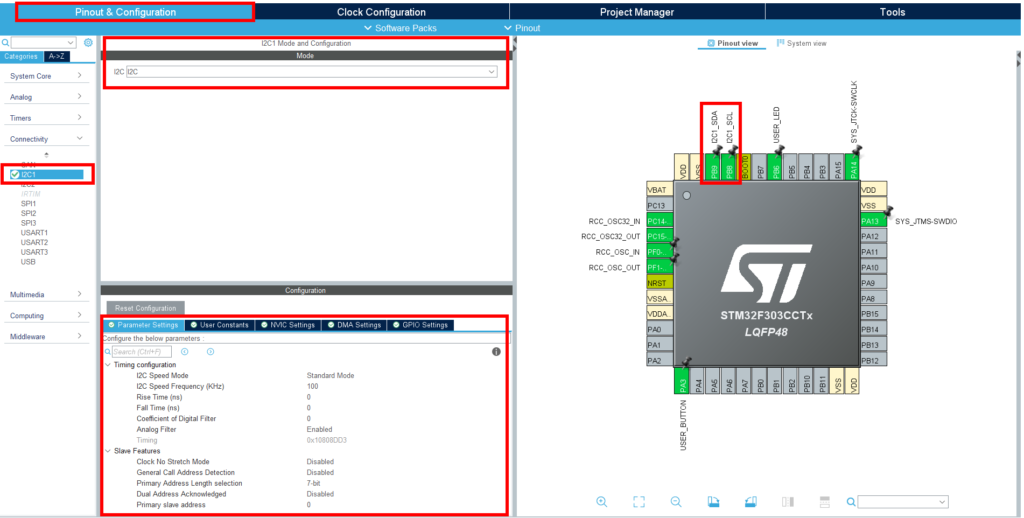

109.   MX_I2C1_Init();
110.   /* USER CODE BEGIN 2 */
111.   GB_APDS9306_initialize(&APDS9306_Module);
112. 	GB_APDS9306_Configuration(&APDS9306_Module);
113.   /* USER CODE END 2 */
114.
115.   /* Infinite loop */
116.   /* USER CODE BEGIN WHILE */
117.   while (1)
118.   {
119.     /* USER CODE END WHILE */
120.     GB_APDS9306_Get_Data(&APDS9306_Module);
121.     /* USER CODE BEGIN 3 */
122.   }
123.   /* USER CODE END 3 */
124. }
125.
126. /**

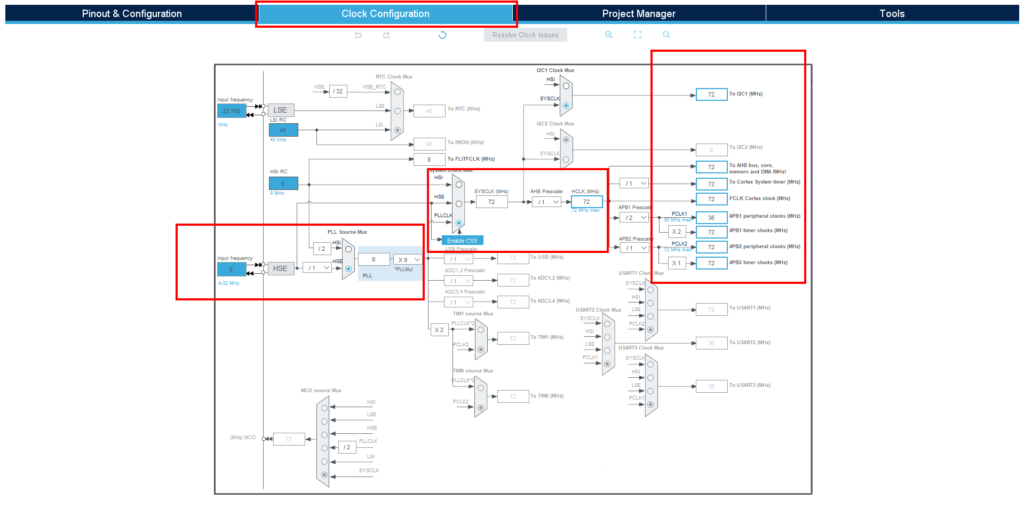

127.   * @brief System Clock Configuration
128.   * @retval None
129.   */
130. void SystemClock_Config(void)
131. {
132.   RCC_OscInitTypeDef RCC_OscInitStruct = {0};
133.   RCC_ClkInitTypeDef RCC_ClkInitStruct = {0};
134.   RCC_PeriphCLKInitTypeDef PeriphClkInit = {0};
135.

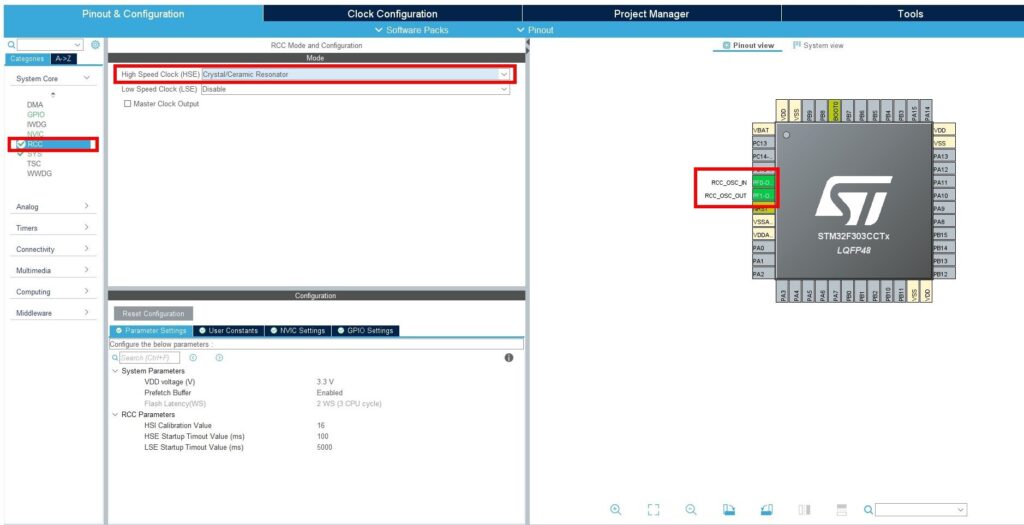

136.   /** Initializes the RCC Oscillators according to the specified parameters
137.   * in the RCC_OscInitTypeDef structure.
138.   */
139.   RCC_OscInitStruct.OscillatorType = RCC_OSCILLATORTYPE_HSE;
140.   RCC_OscInitStruct.HSEState = RCC_HSE_ON;
141.   RCC_OscInitStruct.HSEPredivValue = RCC_HSE_PREDIV_DIV1;
142.   RCC_OscInitStruct.HSIState = RCC_HSI_ON;
143.   RCC_OscInitStruct.PLL.PLLState = RCC_PLL_ON;
144.   RCC_OscInitStruct.PLL.PLLSource = RCC_PLLSOURCE_HSE;
145.   RCC_OscInitStruct.PLL.PLLMUL = RCC_PLL_MUL9;
146.   if (HAL_RCC_OscConfig(&RCC_OscInitStruct) != HAL_OK)
147.   {
148.     Error_Handler();
149.   }
150.
151.   /** Initializes the CPU, AHB and APB buses clocks
152.   */
153.   RCC_ClkInitStruct.ClockType = RCC_CLOCKTYPE_HCLK|RCC_CLOCKTYPE_SYSCLK
154.                               |RCC_CLOCKTYPE_PCLK1|RCC_CLOCKTYPE_PCLK2;
155.   RCC_ClkInitStruct.SYSCLKSource = RCC_SYSCLKSOURCE_PLLCLK;
156.   RCC_ClkInitStruct.AHBCLKDivider = RCC_SYSCLK_DIV1;
157.   RCC_ClkInitStruct.APB1CLKDivider = RCC_HCLK_DIV2;
158.   RCC_ClkInitStruct.APB2CLKDivider = RCC_HCLK_DIV1;
159.
160.   if (HAL_RCC_ClockConfig(&RCC_ClkInitStruct, FLASH_LATENCY_2) != HAL_OK)
161.   {
162.     Error_Handler();
163.   }
164.   PeriphClkInit.PeriphClockSelection = RCC_PERIPHCLK_I2C1;
165.   PeriphClkInit.I2c1ClockSelection = RCC_I2C1CLKSOURCE_SYSCLK;
166.   if (HAL_RCCEx_PeriphCLKConfig(&PeriphClkInit) != HAL_OK)
167.   {
168.     Error_Handler();
169.   }
170. }
171.
172. /* USER CODE BEGIN 4 */
173.
174. /* USER CODE END 4 */
175.
176. /**
177.   * @brief  This function is executed in case of error occurrence.
178.   * @retval None
179.   */
180. void Error_Handler(void)
181. {
182.   /* USER CODE BEGIN Error_Handler_Debug */
183.   /* User can add his own implementation to report the HAL error return state */
184.   __disable_irq();
185.   while (1)
186.   {
187.   }
188.   /* USER CODE END Error_Handler_Debug */
189. }
190.
191. #ifdef  USE_FULL_ASSERT
192. /**
193.   * @brief  Reports the name of the source file and the source line number
194.   *         where the assert_param error has occurred.
195.   * @param  file: pointer to the source file name
196.   * @param  line: assert_param error line source number
197.   * @retval None
198.   */
199. void assert_failed(uint8_t *file, uint32_t line)
200. {
201.   /* USER CODE BEGIN 6 */
202.   /* User can add his own implementation to report the file name and line number,
203.      ex: printf("Wrong parameters value: file %s on line %d\r\n", file, line) */
204.   /* USER CODE END 6 */
205. }
206. #endif /* USE_FULL_ASSERT */
207.
