GebraBit TCRT5000-2



  • Module type: 2-channel Reflective Optical module
  • Module Supply Voltage: 3.3 V or 5.0 V
  • Output Type: Analog-Voltage/Digital-Logic
  • Distance range: Up to 15mm
  • Package: GebraBit small (36.29mm x 32.72mm)



Add to wishlist
Compare
Add to wishlist
SKU: GB505R Categories: infrared IR, Optical
Share
  • Description
  • Specifications
  • Documents
Description

OVERVIEW

GebraBit TCRT5000-2 is a reflective Optical, 2-channel module.

The GebraBit TCRT5000-2 module can be used for robotic projects such as line followers.

GebraBit TCRT5000-2 module can operate with “3V3” or “5V” supply Voltages by considered “VCC SEL” jumper selector.

GebraBit TCRT5000-2 module OUTPUT is available as the analog and digital voltage on “AO1” and “AO2“, “DO1” and “DO2” pins.

For easy accessibility, GebraBit TCRT5000-2  gives access to the “5V“, “GND“, “DO1“, “DO2“, “AO1“, and “AO2” pins by an IDC-2×4 connector to extend them on other boards.

The distance between 2 TCRT500 sensors is about 18mm.

The IR intensity threshold is adjustable by an embedded potentiometer in the GebraBit TCRT5000-2 module, when the IR intensity goes above, or below the threshold, the “DO1” and “DO2”  pin and the LEDs status will be changed.

NOTE: An empty TCRT5000 sensor slot has been regarded in the module, so the GebraBit TCRT5000-2 can be used as a one-channel module, and the output data will be available on “AO1” and “DO1” pins.

The TCRT5000 is a reflective sensor that includes an infrared emitter and phototransistor in a leaded package that blocks visible light.



WARNING: FOR ACCURATE INFORMATION ABOUT ICs ABSOLUTE MAXIMUM RATINGS AND ITS PRECIOUS  CHARACTERISTICS RANGES, USERS MUST CERTAINLY REFER TO ICs MANUFACTURE DATASHEET.



Key Features

  • User-selectable module power supply voltage between 3V3 and 5V
  • Analog Voltage OUTPUT
  • Digital Voltage OUTPUT
  • Data Pin access with IDC connector
  • Usable as one-channel
  • Adjustable IR intensity threshold
  • On Board, ON/OFF LED indicator
  • Pin Compatible with GEBRABUS
  • GebraBit small package
  • It can be used as a daughter board of GebraBit MCU Modules
  • Featuring Castellated pad (Assembled as SMD Part)
  • Separatable screw parts to reduce the size of the board

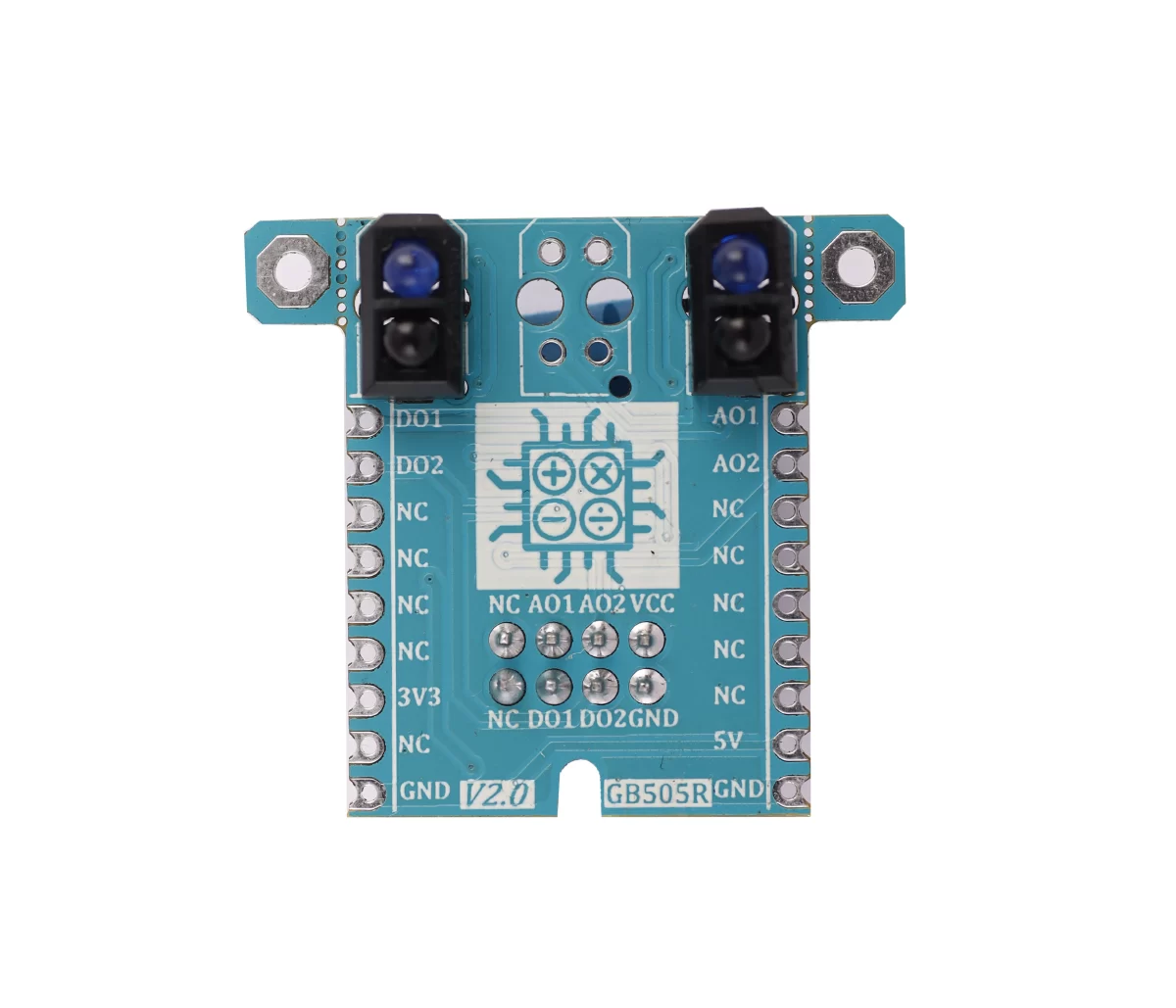

Pinout Diagram

TCRT5000-2 pinout

Module Overview

gebrabit TCRT5000-2 parts





Specifications
Part Number

GebraBit TCRT5000-2

Short Description

GebraBit TCRT5000-2 is a 2-channel Up to 15mm Reflective Optical module with, Analog-Voltage/Digital-Logic output and suitable for robotic projects

Product Type

Module

Module Supply Voltage

3.3 V or 5.0 V

Module Logic Voltage

3.3 V or 5.0 V

Module Current Consumption

80 mA to 120 mA (Typ. 100 mA)

Output Type

Analog-Voltage/Digital-Logic

Distance range

Up to 15mm

Package

GebraBit small (36.29mm x 32.72mm)

Brand

GebraBit

Documents

Documents Link

  • Schematic (.pdf)
  • Module Layout (.pdf)
  • GebraBit TCRT5000-2 Datasheet
  • Wiki Link (Source Code and Tutorial)
DISCLAIMER: GEBRABIT PRODUCTS ARE INTENDED SOLELY FOR RESEARCH & DEVELOPMENT PURPOSES. GEBRABIT EXPLICITLY DECLARES IT HAS NO RESPONSIBILITY IF USERS UTILIZE THEM IN ALL OTHER SENSITIVE AND PRECISE APPLICATIONS THAT CAUSE FINANCIAL AND HUMAN LIFE DAMAGE.

Related products

Compare
Close

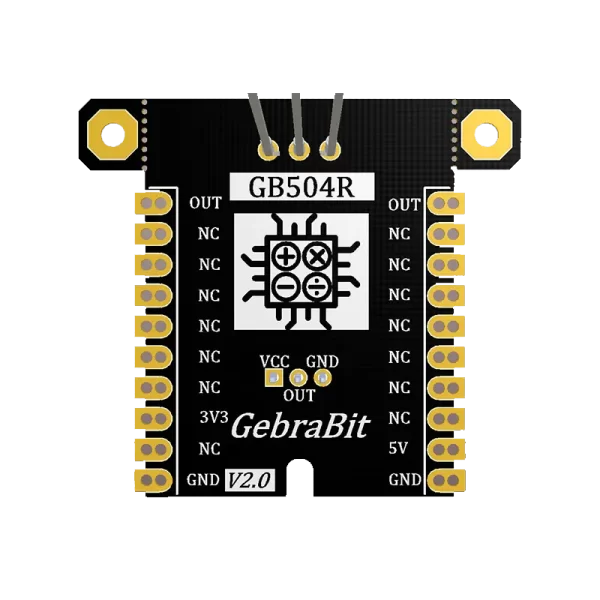

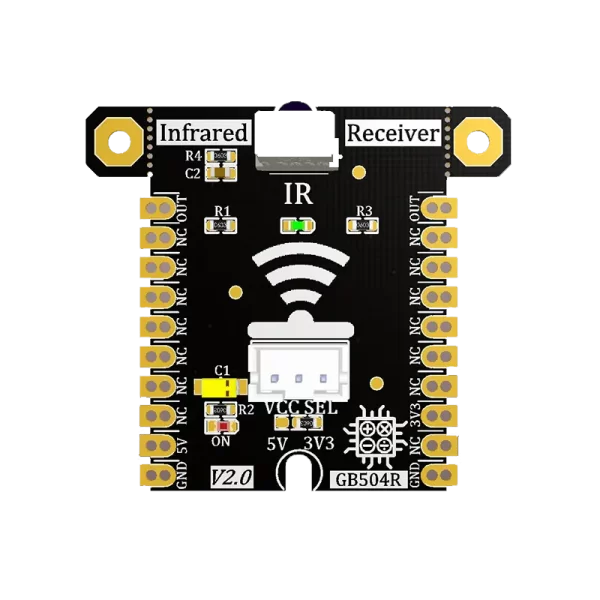

GebraBit VS1838


  • Module type: Infrared Receiver module
  • Module Supply Voltage: 3.3 V or 5 V
  • Output Type: Digital-PWM
  • Distance range: Up to 10m
  • Carrier Frequency: 38 KHZ
  • Acceptance angle: ± 35 Deg
  • Package: GebraBit small (36.29mm x 32.72mm)

Add to wishlist
Read more
Quick view
Compare
Close

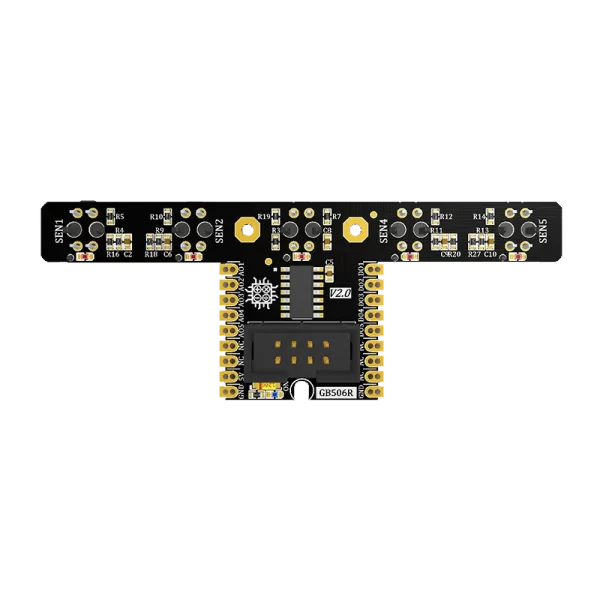

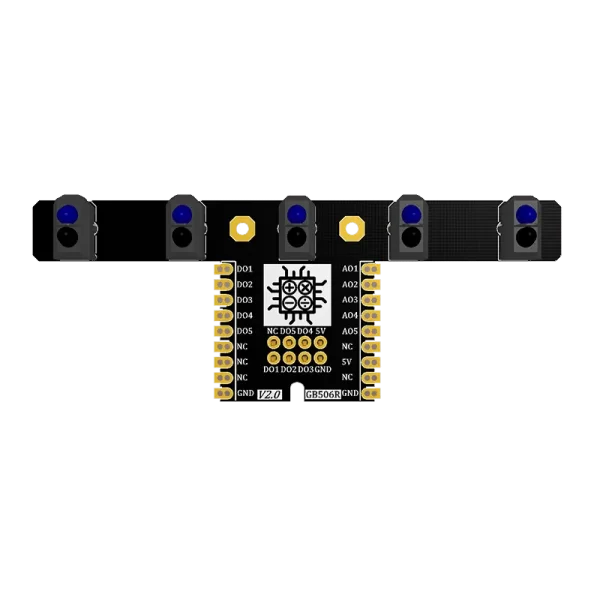

GebraBit TCRT5000-5
