GebraBit Sound Detector



  • Module type: Audio sensing module
  • Module Supply Voltage: 3.3 V or 5.0 V
  • Output Type: Analog and Digital-Voltage
  • Frequrency Range: 20 HZ to 20 KHZ
  • Sensitivity: – 44 dB ± 2 dB
  • Package: GebraBit small (36.29mm x 32.72mm)



Add to wishlist
Compare
Add to wishlist
SKU: GB702SV Categories: Audio-Voice, Microphone, Products
Share
  • Description
  • Specifications
  • Documents
Description

OVERVIEW

GebraBit Sound Detector module is a Highly-Sensitive microphone integrated with a  Voltage Comparator OpAmp.

GebraBit Sound Detector module can operate with “3V3” or “5V” supply Voltages by considered “VCC SEL” jumper selector.

Module OUTPUT is available as the analog and digital voltage on GebraBit Sound Detector module “A0” and “D0” pins.

The sound intensity threshold is adjustable by an embedded potentiometer in the GebraBit Sound Detector module, when the sound intensity goes above, or below the threshold, the “DO” pin and the “Sound Detected” LED status will be changed.

WARNING: FOR ACCURATE INFORMATION ABOUT ICs ABSOLUTE MAXIMUM RATINGS AND ITS PRECIOUS  CHARACTERISTICS RANGES, USERS MUST CERTAINLY REFER TO ICs MANUFACTURE DATASHEET.



Key Features

  • Highly-Sensitive Capacitive Microphone
  • Built-in voltage comparator
  • User-selectable module power supply voltage between 3V3 and 5V
  • Analog Voltage OUTPUT
  • Digital Voltage OUTPUT
  • Adjustable sound intensity threshold
  • On Board, ON/OFF LED indicator
  • Pin Compatible with GEBRABUS
  • GebraBit small package
  • It can be used as a daughter board of GebraBit MCU Modules
  • Featuring Castellated pad (Assembled as SMD Part)
  • Separatable screw parts to reduce the size of the board

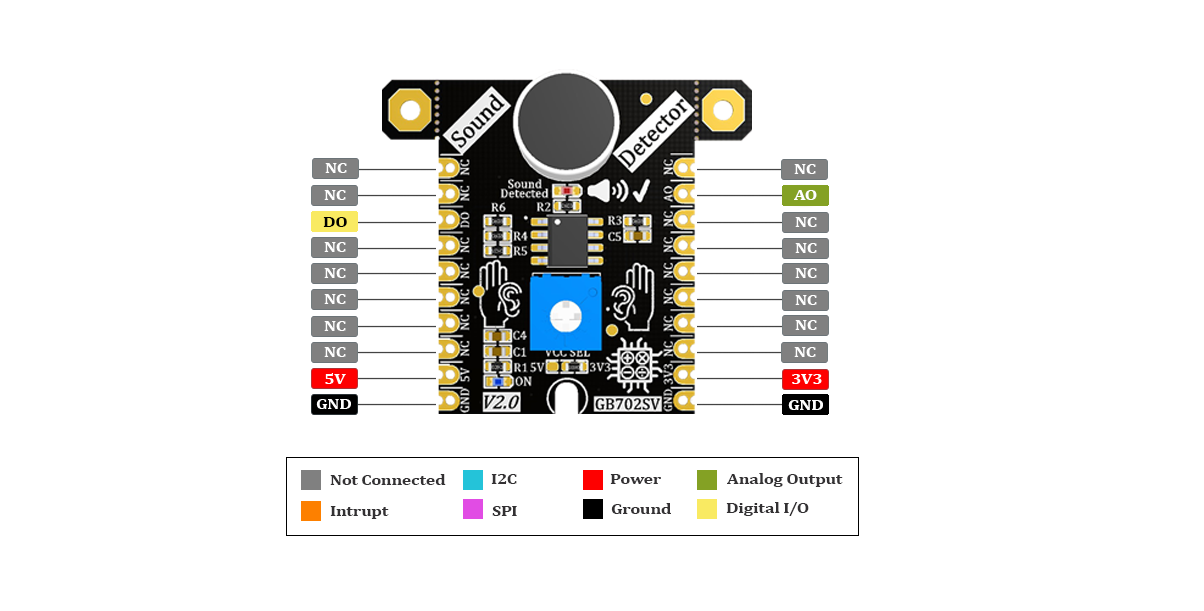

Pinout Diagram





Module Overview

gebrabit Sound Detector parts

Specifications
Part Number

GebraBit Sound Detector

Documents

Documents Link

  • Schematic (.pdf)
  • Module Layout (.pdf)
  • GebraBit Sound Detector Datasheet
  • Wiki Link (Source Code and Tutorial)
DISCLAIMER: GEBRABIT PRODUCTS ARE INTENDED SOLELY FOR RESEARCH & DEVELOPMENT PURPOSES. GEBRABIT EXPLICITLY DECLARES IT HAS NO RESPONSIBILITY IF USERS UTILIZE THEM IN ALL OTHER SENSITIVE AND PRECISE APPLICATIONS THAT CAUSE FINANCIAL AND HUMAN LIFE DAMAGE.
